8
Unpacking
Remove all contents from the shipping carton.
Do not discard the carton or packing material
until your Model JJP-8BT Jointer-Planer is
assembled and is running satisfactorily.
Compare the contents of the carton against the
list of parts in Contents of Shipping Container
(below). The letter identification in the list
corresponds to the items shown at right. This is
your key for identifying the parts used
throughout the Assembly section for easy
reference.
Remove the protective coating that is applied to
the table with a house hold grease and spot
remover.

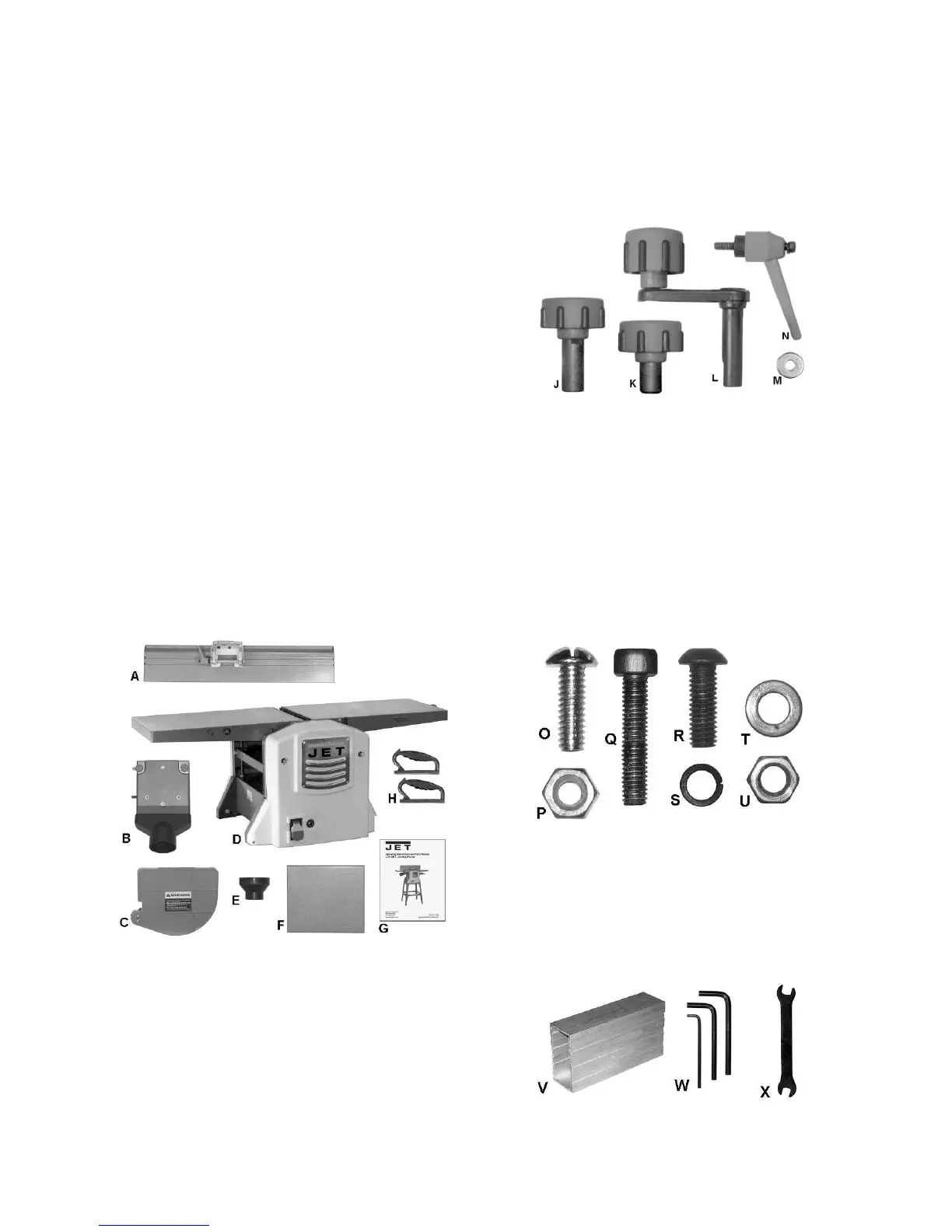

Contents of the Main Carton
01 Jointer Fence (A)
01 Dust Chute (B)
01 Cutterhead Guard (C)
01 Jointer-Planer (D)
01 2-1/2" to 4" Hose Adapter (E)
01 Planer Outfeed Table Extension (F)
01 Owner's Manual (G)
02 Push Block (H)
Figure 1 – Contents of the Main Carton
Knobs and Handles
01 Lock Knob (J)
01 Lock Knob (K)
01 Height Adjust Handle (L)
01 Flat Washer (M)
01 Lock Handle (N)
Figure 2 – Knobs and Handles
Hardware
02 Pan Head Machine Screw (O)
02 Hex Nut (P)
02 Socket Head Cap Screw (Q)
03 Socket Head Cap Screw (R)
05 Lock Washer (S)
06 Flat Washer (T)
03 Hex Nut (U)
Figure 3 – Hardware
Tools Included
01 Knife Setting Gauge (V)
01 3, 5, 6mm hex wrenches (set of 3) (W)
01 8/10mm Open-end Wrench (X)
Figure 4 – Tools Included
