9
Stand
The stand is not included but is an optional item
available for purchase. To purchase, call Customer
Service at the phone number on the cover of this
manual. The following instructions are included if
you have purchased the stand or will purchase one
at a later date.
Compare the contents of the carton against the list
of parts in Contents of Stand Carton (below).
Contents of Stand Carton
02 Long Support Plate(S
A
)
02 Short Support Plate (S
B
)
02 Long Stand Top Support (S
C
)
02 Short Stand Top Support (S
D
)
04 Stand Leg (S
E
)
Stand Hardware
04 Hex Cap Screw (S
F
)
24 Carriage Bolt (S
G
)
28 Flat Washer (S
H
)
24 Lock Washer (S
J
)
28 Hex Nut (S
K
)
04 Socket Head Cap Screw (S
M
)
04 Flat Washer (S
N
)
04 Lock Washer (S
P
)
04 Rubber Foot (S
Q
)

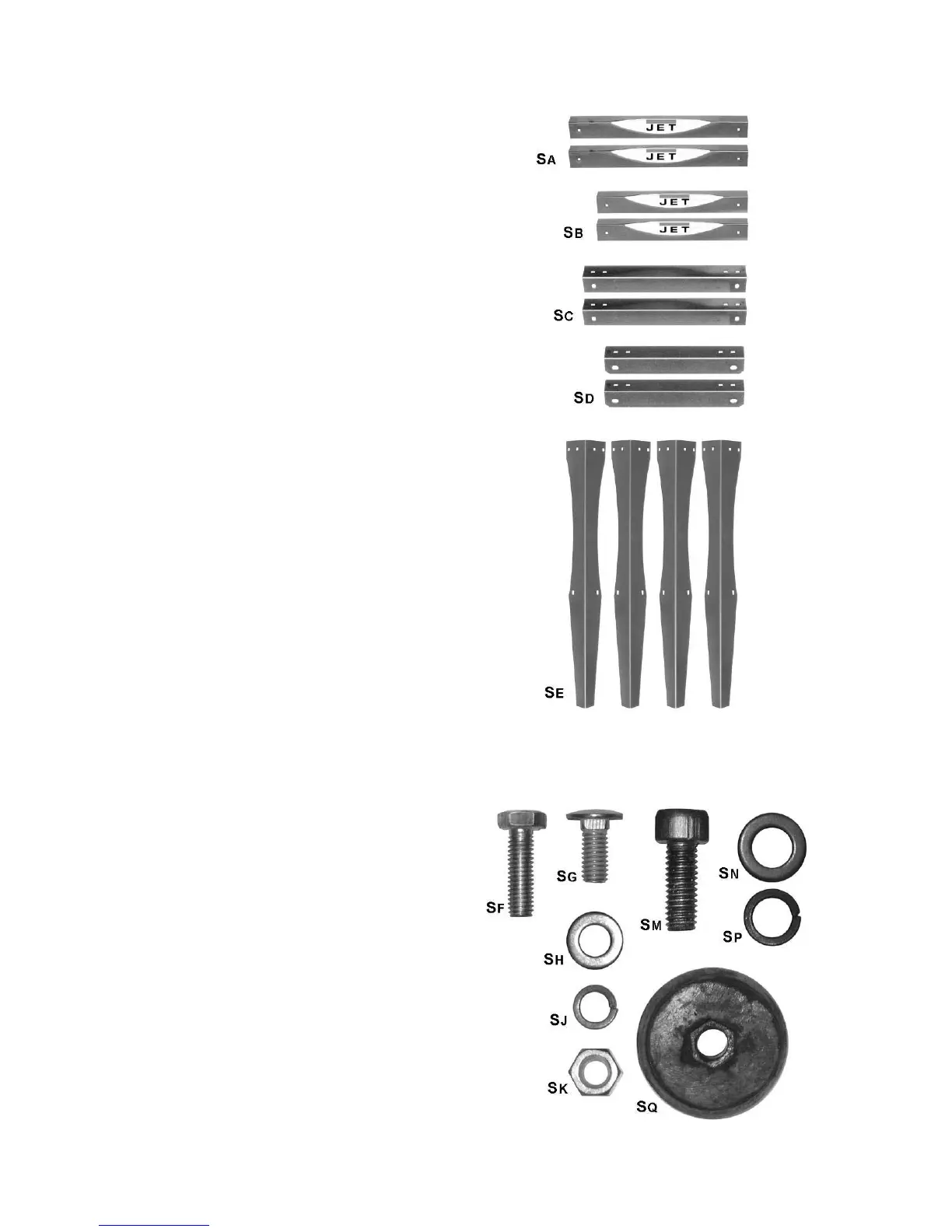

Figure 5 – Contents of Stand Carton
Figure 6 – Stand Hardware
