14
Belt Replacement
1. Disconnect the machine from the power source (unplug).
2. Open the access doors at the left side of the base (Figure 10), and at the back side of the headstock
(Figure 11).
3. Loosen the motor plate lock handle (A, Figure 12). Lift up on the motor plate handle (B, Figure 12) to
take tension off the belt.
4. Loosen the set screw (B, Figure 11) on spindle pulley (upper).
5. Loosen two set screws in handwheel (C, Figure 11). Unscrew the handwheel while holding onto the
spindle.
6. Remove handwheel and pull the spindle out while holding onto the spindle pulley.
7. Place the new belt on the spindle pulley. Place the spindle pulley back into the headstock the same
way it was removed.
8. Insert the spindle into the spindle pulley aligning the key.
9. Thread the handwheel onto the spindle leaving a little space between the handwheel and headstock.
Tighten set screws.
10. Center the spindle pulley and tighten set screw.
11. Wrap the belt around the motor pulley (lower). Be sure the belt is aligned with spindle pulley and motor
pulley.
12. Tension the belt and tighten the motor plate lock handle.
Removing and Installing Live Center

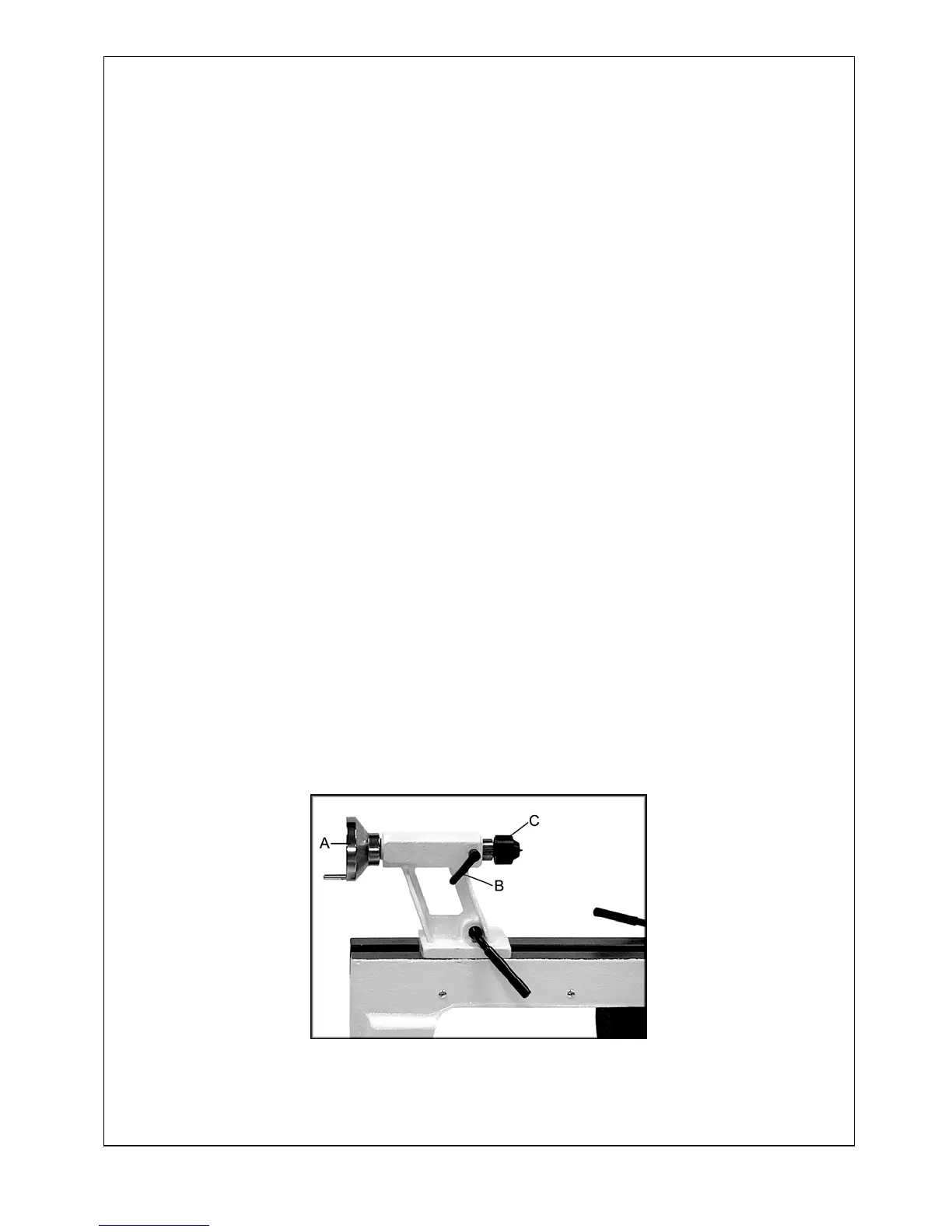

1. Loosen tailstock lock handle (B, Figure 13).
2. Turn the tailstock handwheel (A, Figure 13) counter-clockwise until the live center (C, Figure 13) ejects
from the spindle. NOTE: Hold the live center in your other hand to prevent it from falling.
3. Before installing the live center into the spindle, the spindle must be extended out from the tailstock
body far enough to allow the live center to “seat” in the spindle.
Figure 13
