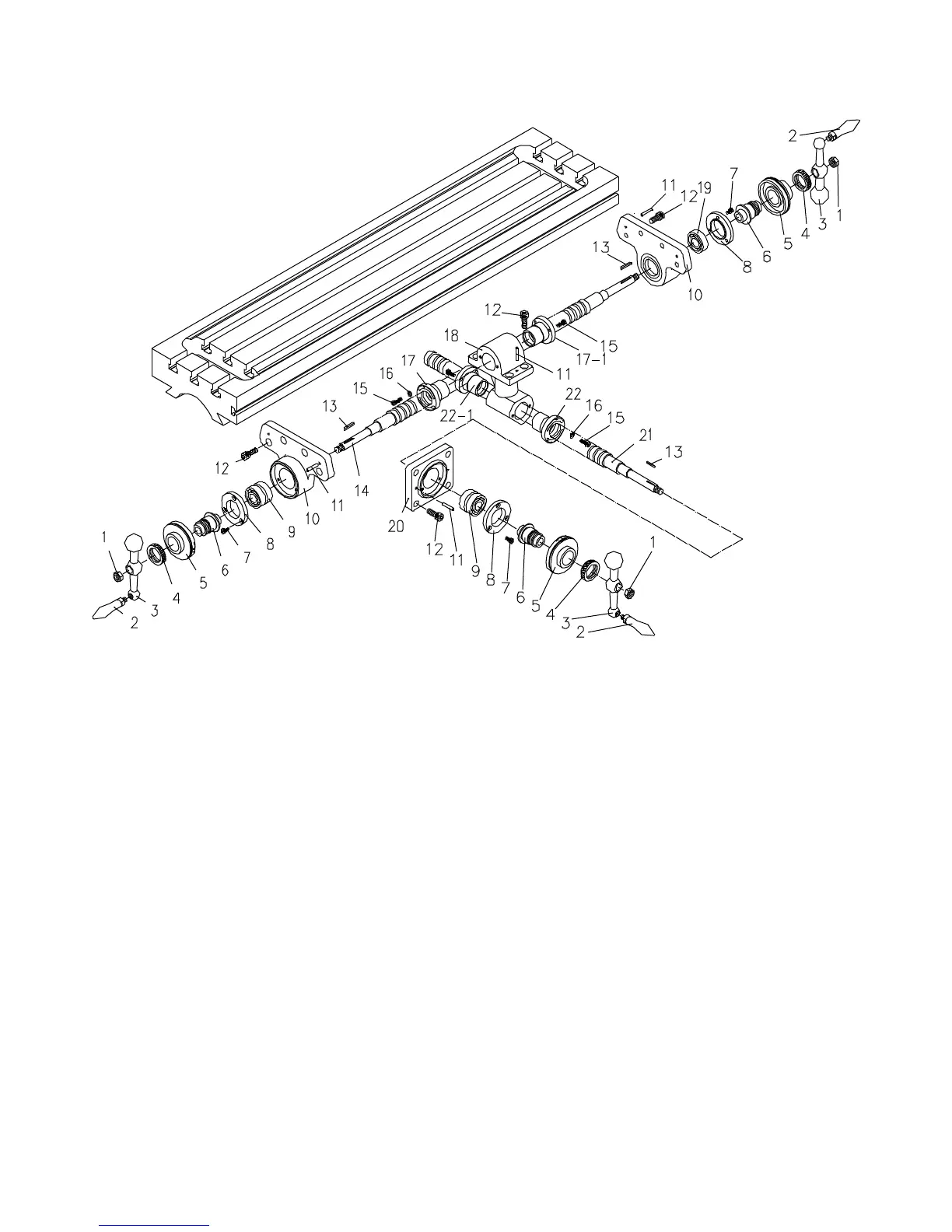

Lead Screw Assembly
Index No. Part No. Description Size Qty
1 .............. TS-0571052 ............Jam Nut ...........................................................1/2-20UNF ............................. 3
2 .............. LT-010C ..................Handle ........................................................................................................... 3
3 .............. LT-010B ..................Ball Crank ...................................................................................................... 3
4 .............. LT-009 ....................Dial Lock Nut .................................................................................................. 3
5 .............. LT-008 ....................Dial ................................................................................................................ 3
6 .............. LT-007 ....................Dial Holder ..................................................................................................... 3
7 .............. TS-150301 ..............Hex Socket Cap Screw .....................................M6 x 12 .................................. 9
8 .............. LT-005 ....................Bearing Retainer Ring ..................................................................................... 3
9 .............. BB-6204ZZ ..............Ball Bearing.................................................................................................... 3
10 ............ LT-002 ....................Bearing Bracket .............................................................................................. 2
11 ............ LS-009 ....................Spring Pin ........................................................5 x 30 mm .............................. 8
12 ............ TS-1505031 ............Hex Socket Cap Screw .....................................M10 x 25 .............................. 16
13 ............ LS-014A ..................Key ..................................................................3 x 3 x 25 mm......................... 3
14 ............ MT-015D .................Leadscrew ..................................................................................................... 1
15 ............ TS-1503041 ............Hex Socket Cap Screw .....................................M6 x 16 ................................ 10
16 ............ TS-1550051 ............Washer ............................................................M7 ......................................... 4
17 ............ MT-019B .................Feed Screw Nut (set of 2; includes index # 17-1) .............................................. 1
18 ............ MT-017 ...................Feed Nut Bracket............................................................................................ 1
19 ............ BB-6204ZZ ..............Ball Bearing.................................................................................................... 1
20 ............ MT-025 ...................Cross Feed Bearing Bracket ............................................................................ 1
21 ............ MT-024 ...................Cross Feed Screw .......................................................................................... 1
22 ............ MT-022 ...................Cross Feed Nut (set of 2; includes index # 17-22) ............................................. 1
