Tilting the Table
1. Disconnect the machine from the power
source, unplug.

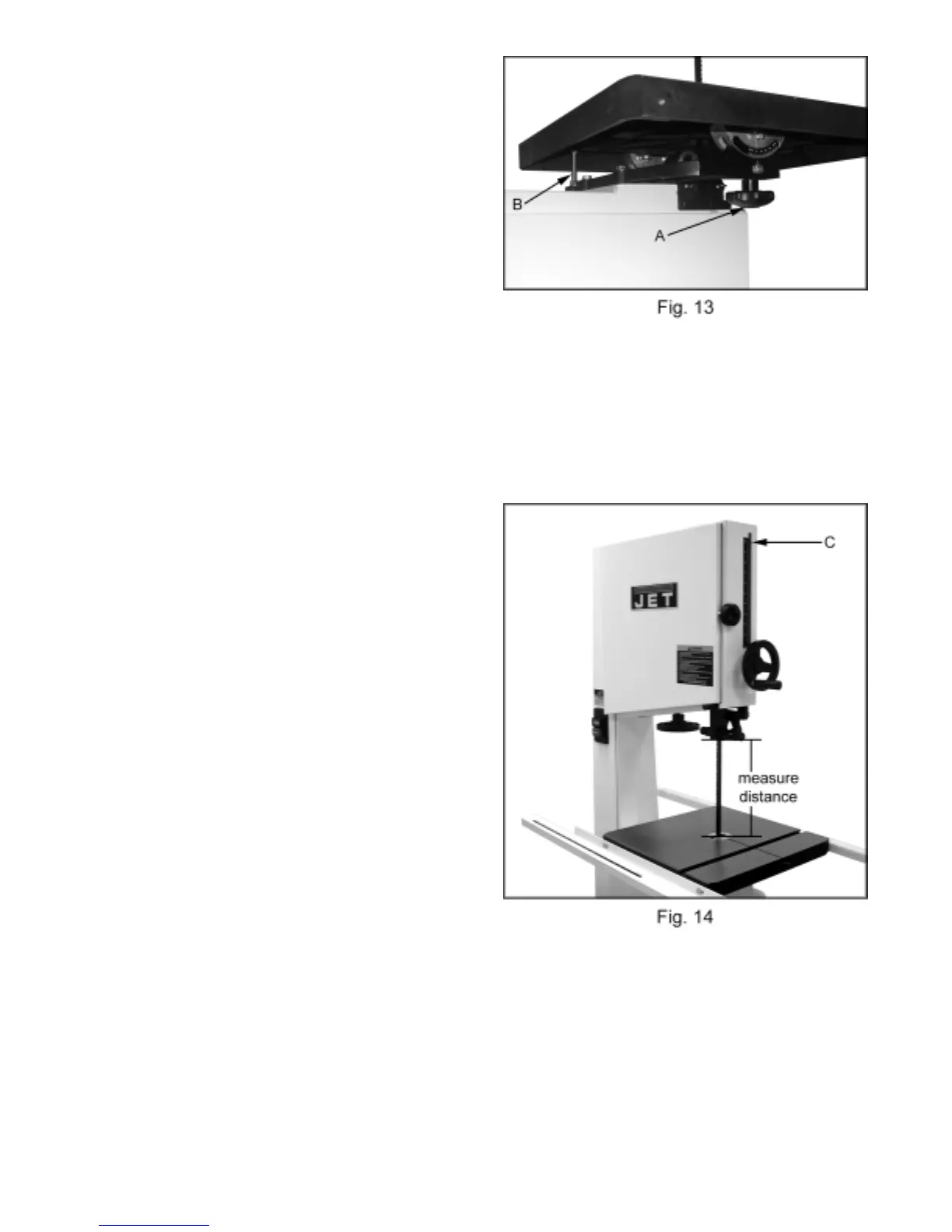

2. Loosen the lock knobs (A, Fig. 13).
3. Tilt table up to 45 degrees to the right, or up
to 10 degrees to the left.
4. Tighten the lock knobs.
Note: Table stop bolt (B, Fig. 13) must be
removedtotilttabletotheleft.
Height Scale Adjustment
1. Disconnect the machine from the power
source, unplug.
2. The upper blade guide should be set about
1/8” above the material to be cut.
3. Measure from the table top to the bottom of
the blade guides, Figure 14.
4. Set the indicator to this measurement on the
height scale. Grasp the end of the
indicator (C, Fig. 15) between your finger,
and thumb. Move the indicator into
position.
