7
Dimensions:
Tool rest ...........................................................................................................................................12” (305mm)
Leg footprint ........................................................................................................... 54” x 20” (1372mm x 508mm)
Bed length ...................................................................................................................................... 53” (1346mm)
Bed width .......................................................................................................................................... 8” (203mm)
Overall height, floor to top of headstock, without levelers ................................................................. 47” (1194mm)
Distance floor to spindle centerline (approximate) ............................................................................ 44” ( 1117mm)
Tool rest post diameter ......................................................................................................................1” (25.4mm)
Shipping dimensions (Lathe only) ........................................ 56”L x 21”W x 21.65”H (1420mm x 530mm x 550mm)
Shipping dimensions (Leg Set only)...................................33”L x 22.83”W x 17.71”H (840mm x 580mm x 450mm)
Overall dimensions, assembled with Legs ............................. 74”L x 18”W x 49”H (1880 mm x 458mm x 1244mm)
Overall dimensions, assembled without Legs ...................... 74”L x 18”W x 18.26”H (1880 mm x 458mm x 464mm)
Bed Extension length (optional accessory).........................................................................................20” (508mm)
Weights:
Net Shipping
Lathe only ............................................................................................. 220 lb (100 kg) ............... 270 lb (123 kg)
Leg Set only ............................................................................................ 132 lb (60 kg) ................. 143 lb (65 kg)
Optional Bed Extension only ................................................................ 49.5 lb (22.5 kg) ................... 56 lb (25 kg)
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring
obligations.

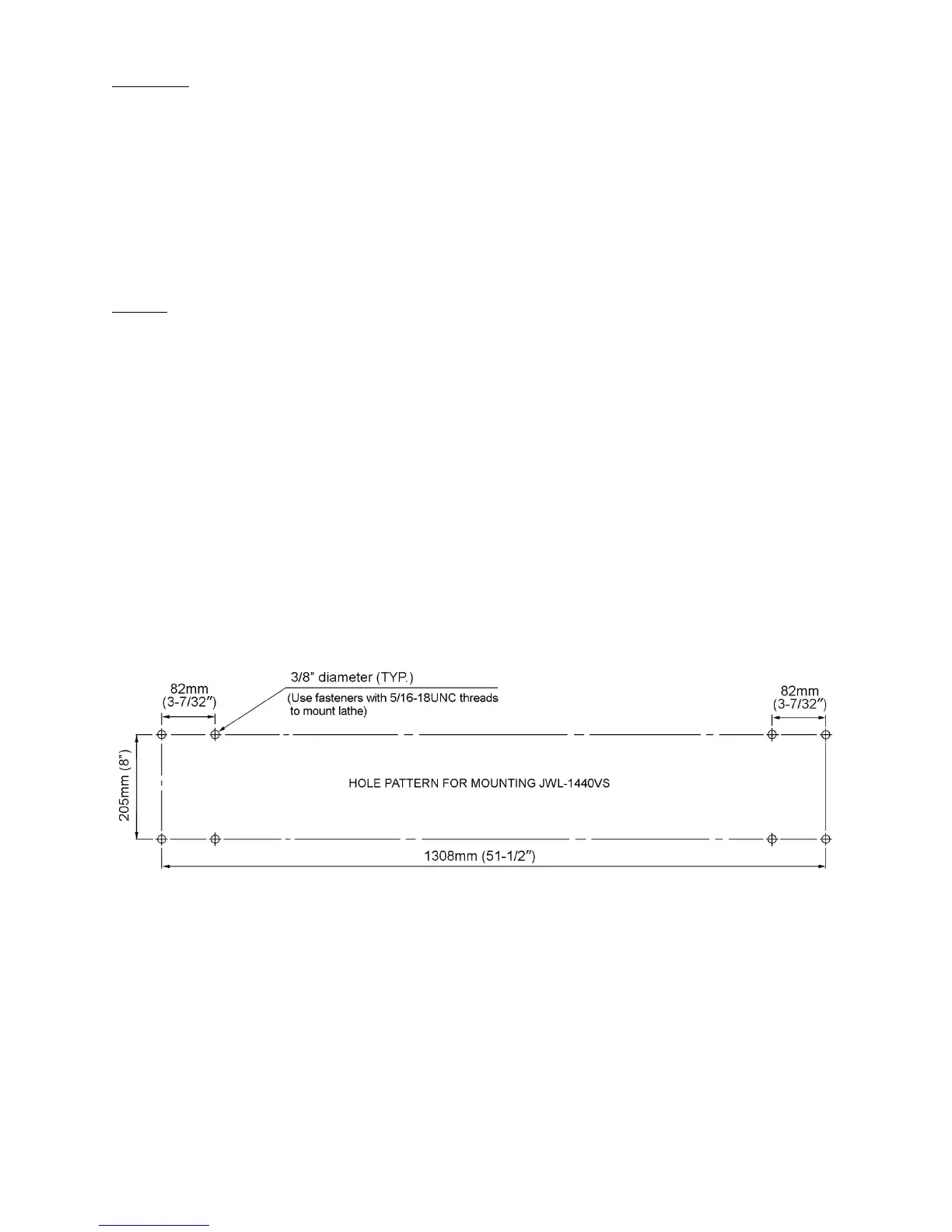

5.1 JWL-1440VS hole pattern
Figure 1
