8
6.0 Setup and assembly
6.1 Shipping contents

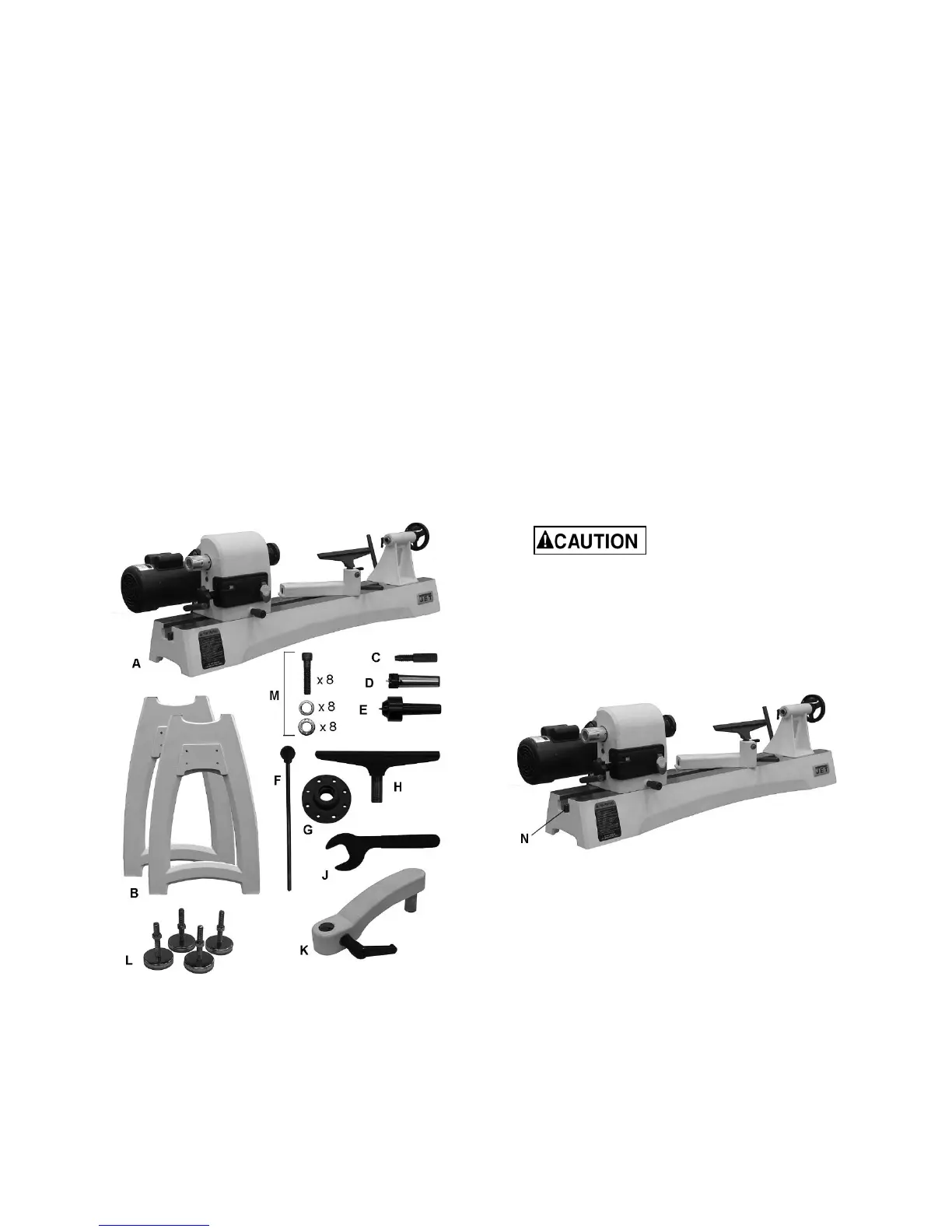

Carton contents for # 719400K (see Figure 2)
1 Lathe bed with headstock, tool support and
tailstock – A
2 Legs – B
1 Spindle index pin – C
1 Spur center – D
1 Live cone center – E
1 Knockout rod – F
1 Faceplate – G
1 Tool rest – H
1 Faceplate wrench – J
1 Tool rest extension – K
4 Levelers – L
1 Operating Instructions & Parts Manual
1 Warranty Card
1 Hardware Package (JWL1440-HP1) – M
8 Socket Head Cap Screws, 5/16 X 1-1/4
8 Lock Washers, 5/16
8 Flat Washers, 5/16
Figure 2
(not to scale)
6.2 Unpacking and cleanup
1. Remove all smaller items from main carton. Do
not discard carton or packing material until
lathe is assembled and running satisfactorily.
2. Inspect contents for shipping damage; if any is
found, report it to your distributor.
3. Compare contents of shipping carton with the
contents list in this manual. Report shortages,
if any, to your distributor. Note: Check lathe
first – some parts may have been pre-installed.
If you did not purchase the leg set and are
mounting the lathe to a bench or table, continue
with section 6.3. If you purchased the leg set, skip
to section 6.4.
6.3 Mounting lathe to bench
1. Unscrew the stud (N, Figure 3) from each end
of the bed.
2. Loosen the locking handles on headstock, tool
rest and tailstock, and slide these items off the
bed. (Refer to section 8.0 for detailed
instructions on adjusting or removing these
items.)
The headstock is heavy.
Use an assistant to help remove.
3. Refer to Figure 1 for mounting hole sizes and
spacing in the lathe bed. The bed has four
5/16”-18UNC threaded holes. Use appropriate
fasteners (bolts and washers) to secure lathe
to bench or table from underneath.
Figure 3
6.4 Installing leg set
Refer to Figure 4.
6mm hex key required
1. Unscrew the stud (N, Figure 3) from each end
of bed.
2. Remove headstock, tailstock and tool rest
support from bed. (Refer to sect. 8.0 for
detailed instructions on adjusting and
removing these items.)
3. Carefully turn bed upside down. Place a mat or
cardboard beneath it to prevent scratching the
bed ways.
