Indexer Positions
How to use the chart

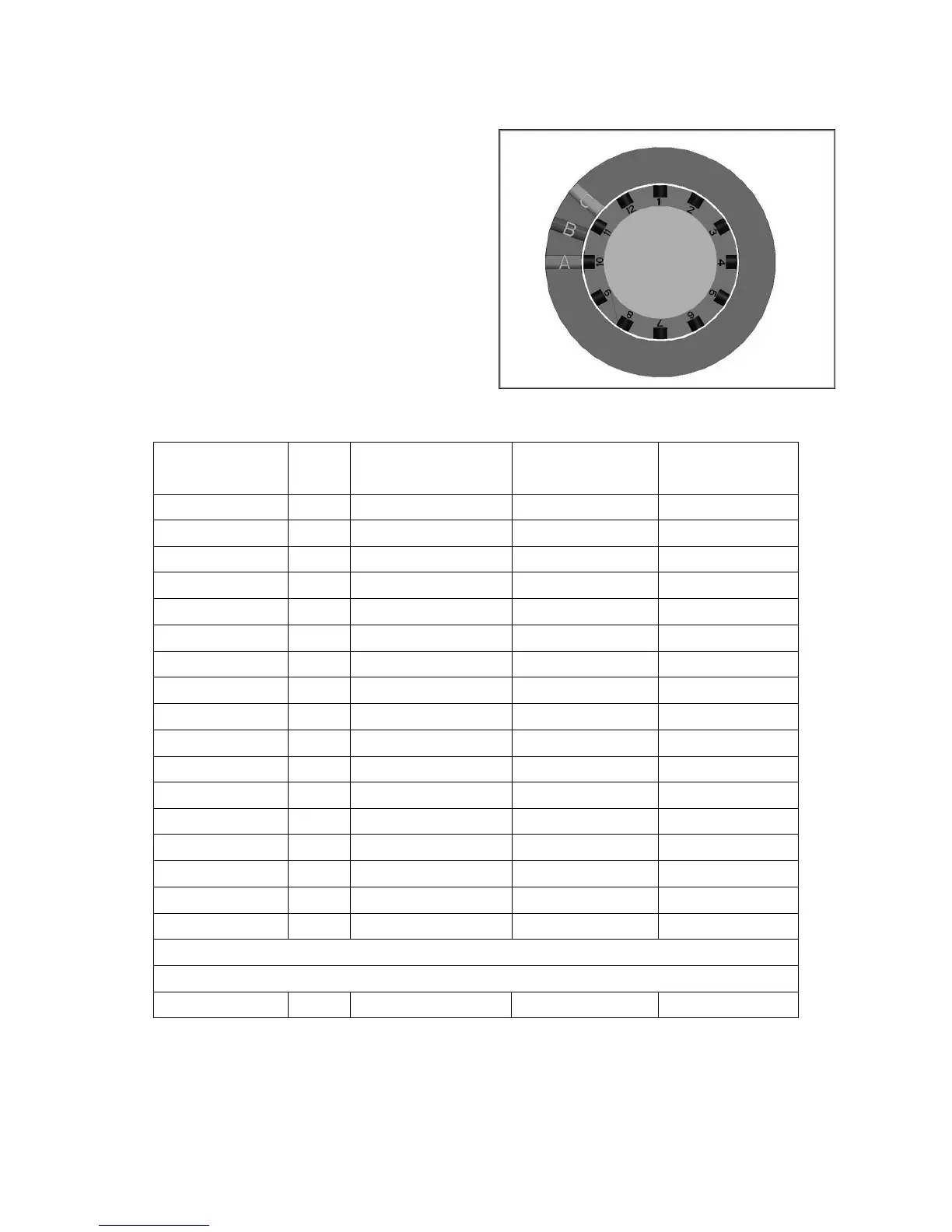

A diagram of the indexer is shown at right, as viewed
from the tailstock end of the Lathe. Points A, B and C
are the holes in the head casting. The holes in the
spindle collar may be considered as numbered 1
through 12.
Example: You wish to rout 9 flutes on your spindle
blank. Locate the “9” in the “No. of Flutes” column;
each flute angle will be 40°. The index pin should first
be inserted into hole combination “A-1”. Make your
first flute at this position. Back off the index pin and
rotate the spindle until the index pin can be inserted
into hole combination “A-5”; this will be followed by
“A-9”. Succeeding flutes will be made with the index
pin in the B position: “B-3”, “B-7” and so on.
No. of Flutes
360° divided by... Angle Letter # Letter # Letter #
1 360.00 A 1
2 180.00 A 1,7
3 120.00 A 1,5,9
4 90.00 A 1,4,7,10
5 72.00 -----------------------
6 60.00 A 1,3,5,7,9,11
8 45.00 A 1,4,7,10
9 40.00 A 1,5,9 B 3,7,11 C 1,5,9
10 36.00 -----------------------
12 30.00 A 1 to 12
15 24.00 -----------------------
16 22.50 -----------------------
18 20.00 A 1,3,5,7,9,11 B 1,3,5,7,9,11 C 1,3,5,7,9,11
20 18.00 -----------------------
24 15.00 A 1 to 12
30 12.00 -----------------------
36 10.00 A 1 to 12 B 1 to 12 C 1 to 12
other interesting patterns....
9 ------ A 1,5,9 B 1,5,9 C 1,5,9
NOTE: A dashed line indicates that particular set of angles is not possible with the indexer.
