9
WARNING
Read and understand the entire contents of
this manual before attempting assembly or
operation!
Failure to comply may cause serious injury!

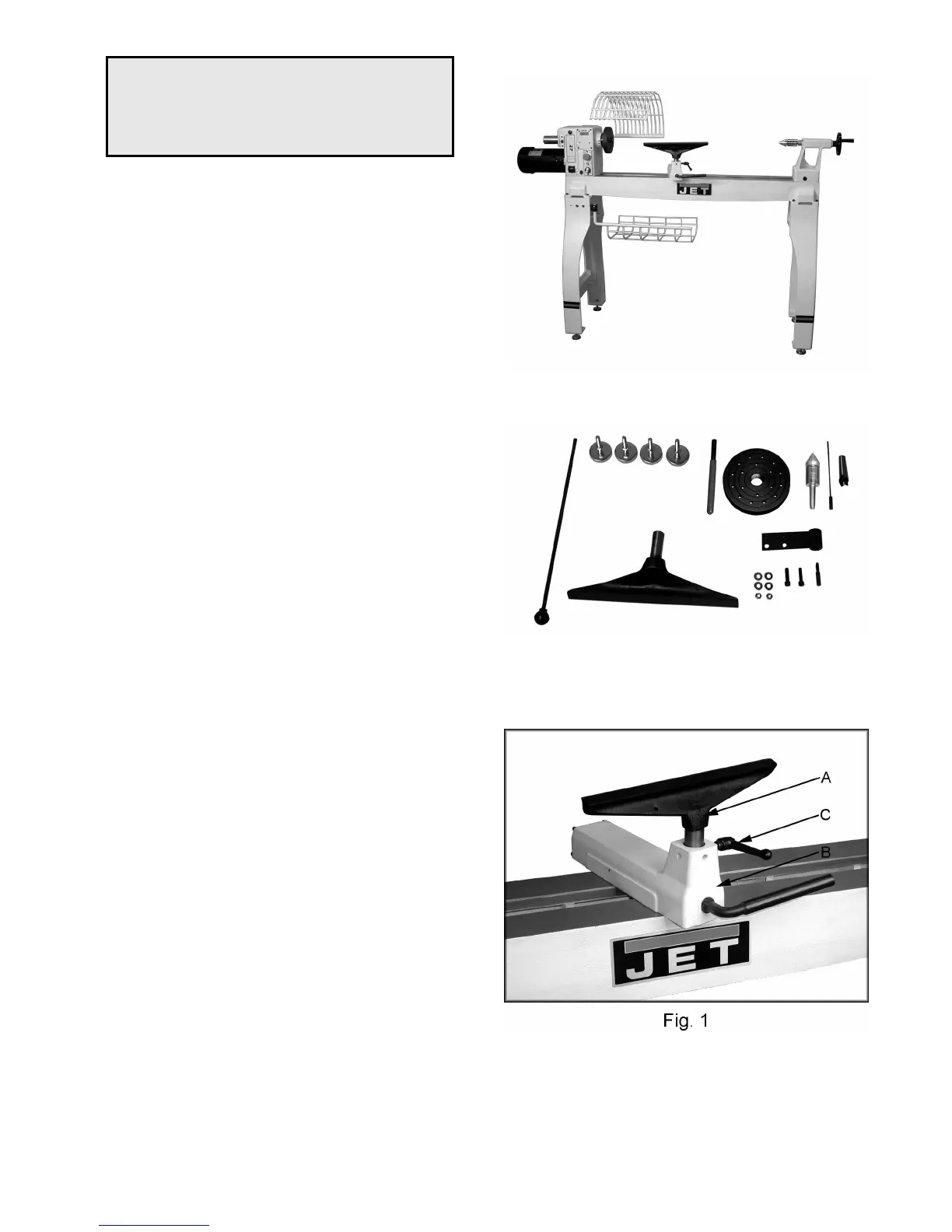

Contents of the Shipping Containers
1. Lathe
2. Cast Legs
1. Tailstock
1. Headstock
1. Tool Rest Body
1. Tool Basket
1. Guard Assembly
1. Accessory Package
1. Owner’s Manual & Warranty Card
Accessory Package Box
1. Live Center
1. Rod for Live Center
1. Spur Center
1. Index Pin
1. Face Plate
1. Rod for Face Plate
1. Knockout Rod Headstock
1. Tool Rest
4. Adjustable Feet
Tool Basket Bracket Hardware
2. Hex Sckt Cp Screws 5/16”-18 x 1-1/2”
4. Flat Washers 5/16”
2. Set Screws 1/4”-20 x 1/4”
3. Hex Nuts 5/16”
1. Set Screw 5/16”-18 x 5/8”
Unpacking and Clean-Up
1. Remove the shipping container. Do not
discard any shipping material until the lathe
is set up and running properly.
2. Remove hex cap bolts from skid bottom and
move the lathe off the skid and into position.
3. Clean all rust protected surfaces with a
cleaner degreaser. Clean thoroughly under
the headstock, tailstock and tool rest body.
Assembly
1. Secure tool rest (A, Fig. 1) to tool rest body
(B, Fig. 1) by tightening handle (C, Fig. 1).
2. Slide the tailstock and tool rest to the
headstock end of the lathe bed. See
“Controls and Features” section of this
manual on how to move the tailstock and
tool rest.
Contents of Accessory Package
