7

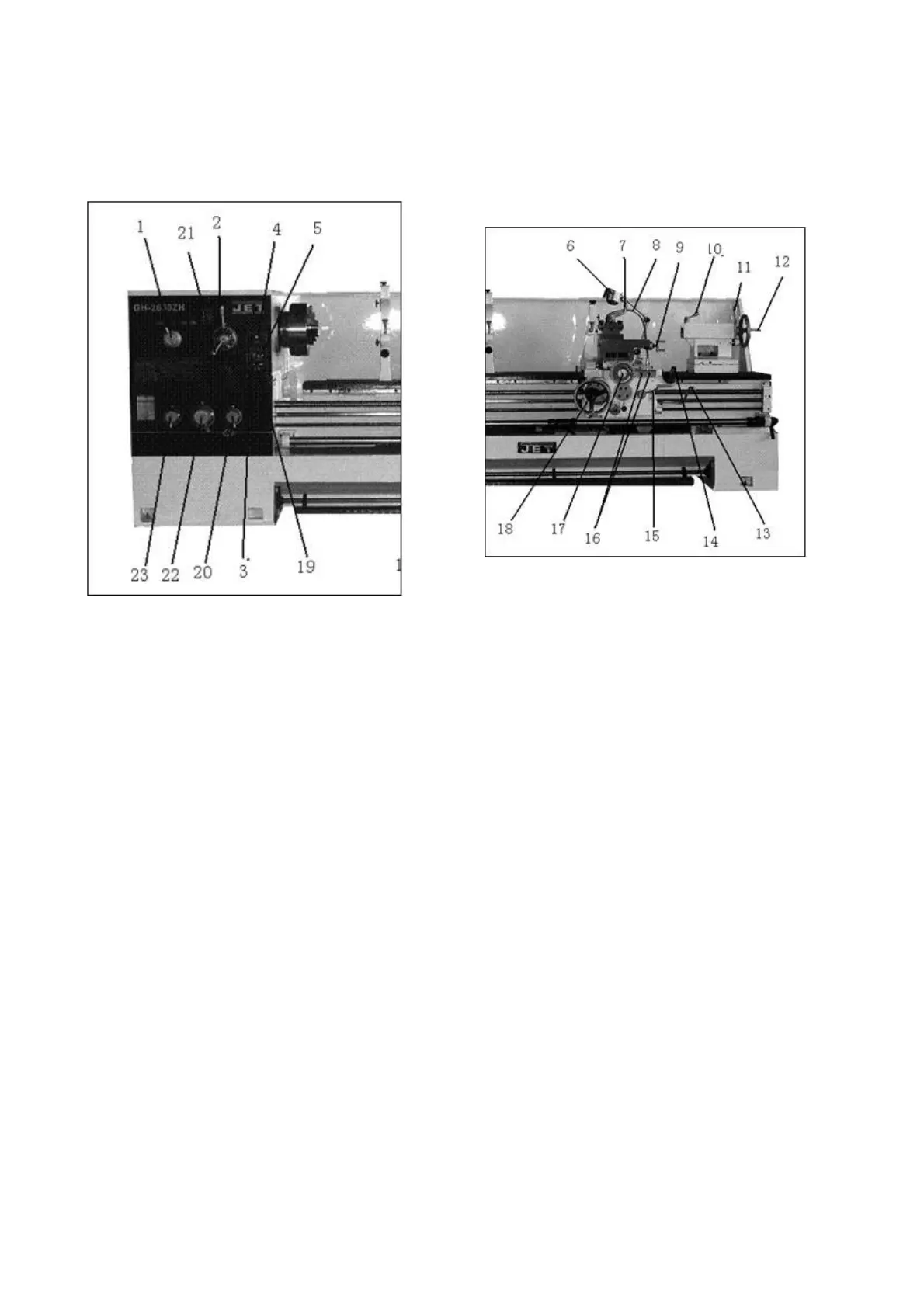

4.4 Machine description
Fig 1
1…Thread pitch lever
2…Speed change lever
3… Emergency Stop button
4…Push-button of cooling Pump
5…Main Motor Start button
6…Lamp Switch
7…Tool Post Clamp Lever
8…Coolant Delivery cock
9…Compound-rest knob
10…Quill Clamp Lever
11….Quill Clamp Lever
Fig 2
12…Tailstock quill Hand wheel
13…Spindle Forward / OFF / Reverse Clutch Lever
14…Feeding and rapid speed Lever
15…Half Nut Lever
16…Main Motor Start /Stop Button
17…Cross feed Lever
18…Carriage Hand wheel
19…Power Switch
20….Feeding Speed Lever
21….Speed Change Lever
22…Feed Change Lever
23…Thread Selector Lever
