JETI model DUPLEX REX3 User Manual

COMPLEX RADIO CONTROL SYSTEM
EN
Group - individual outputs can be
assigned to groups A/B/C. For servos in
one group, the pulses are time -
synchronized. It is recommended to
use all groups equally. However, assign
servos controlling one function, for
example two servos in one aileron, to
the same group.
Reset to default settings - after activation, the receiver is set to the
factory settings.

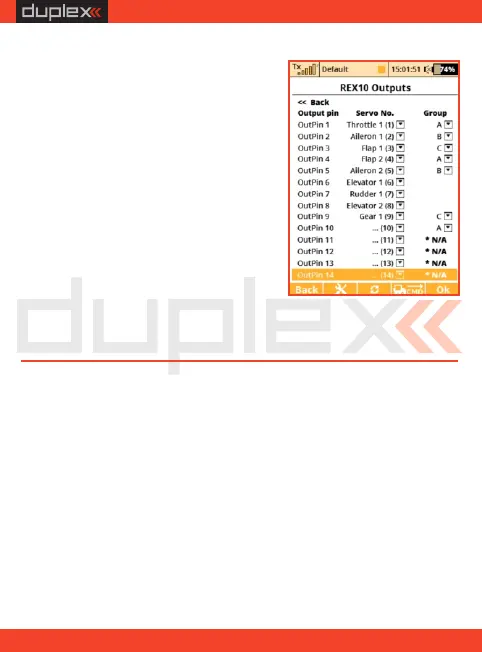

4.1.4 Receiver outputs
Di s pl a y o f f un c t i on s a nd t he i r
assignment to receiver outputs. If
necessary, it is possible to redirect any
functions to the other outputs in this
menu.
30
