JETI model DUPLEX REX3 - Alternative Pin Configuration

COMPLEX RADIO CONTROL SYSTEM
EN

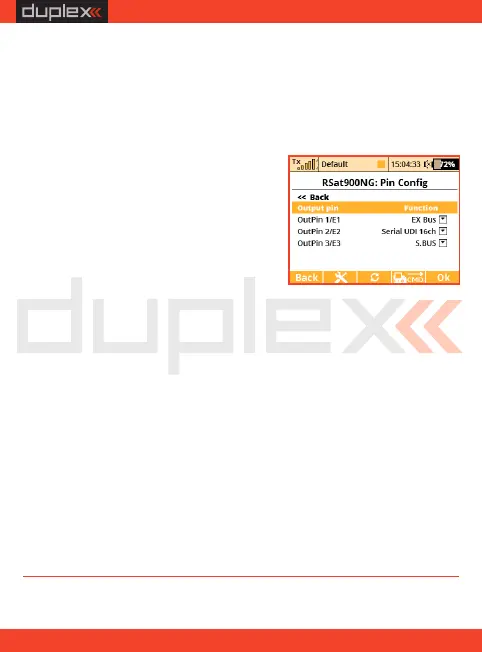

Output settings E1, E2, E3:
S.BUS - digital communication for
transmission of servos deflection
(16 channels only). This setting is suitable, for connecting to a
device that supports S.BUS.
EX-Bus - digital communication for
transmission of servos deflection,
telemetry and configuration data.
This setting is suitable, for example,
for connection to a Central Box or a
device that supports EX-Bus.
UDI 16 - serial data output suitable for connection of devices with
unidirectional UDI interface (16 channels).
UDI 12 - serial data output suitable for connection of devices with
unidirectional UDI interface (12 channels).
Output settings Ext. : This pin is used only to bind the receiver by a
jumper (bind plug).
The receiver has three user adjustable outputs E1-E3 and one
standard Ext.
Reset to factory defaults: resets all configurable items to the
default settings.
5.2 Alternative pin configurations
