Jetline 9600 Series - Section III. Specifications; Applications and Options; Electrical Connections; Physical Dimensions

9629 Microprocessor Controller
- 12 -
Section III
Specications
Applications
For use with wire feed mechanisms:
9629 Used for standard cold wire feed-
ers
- CWF-10B
- CWF-10B/4R
9629-0 Used for precision cold wire
feeders
- CWF-20C
9629-P This option can be added to
provide wire pulsing, either
synchronous with the current
pulsing or separately timed.
9629-HW This option can be added to
provide slope up of the wire feed
speed for hot wire welding.
9629-R1 This option can be added to allow
remote control of the wire feed
speed.
Processor: Intel
®
80C196KC, 20 MHz.
Display: 2 x 20 Backlit LCD
Panel: Polycarbonate overlay
Input: 120/240VAC, 1 ph, 50/60 Hz
3/2 Amps
Power cord: 6 ft. (1.8 m) long
8”
(200mm)
16” Dia
(8mm)
5
Connections:
Motor (90VDC Permanent Magnet)
Output: Motor voltage
Input: Tach-generator voltage
Second 9600 Control
Output: Emergency Stop
Input: Emergency Stop, Pulse Lockout

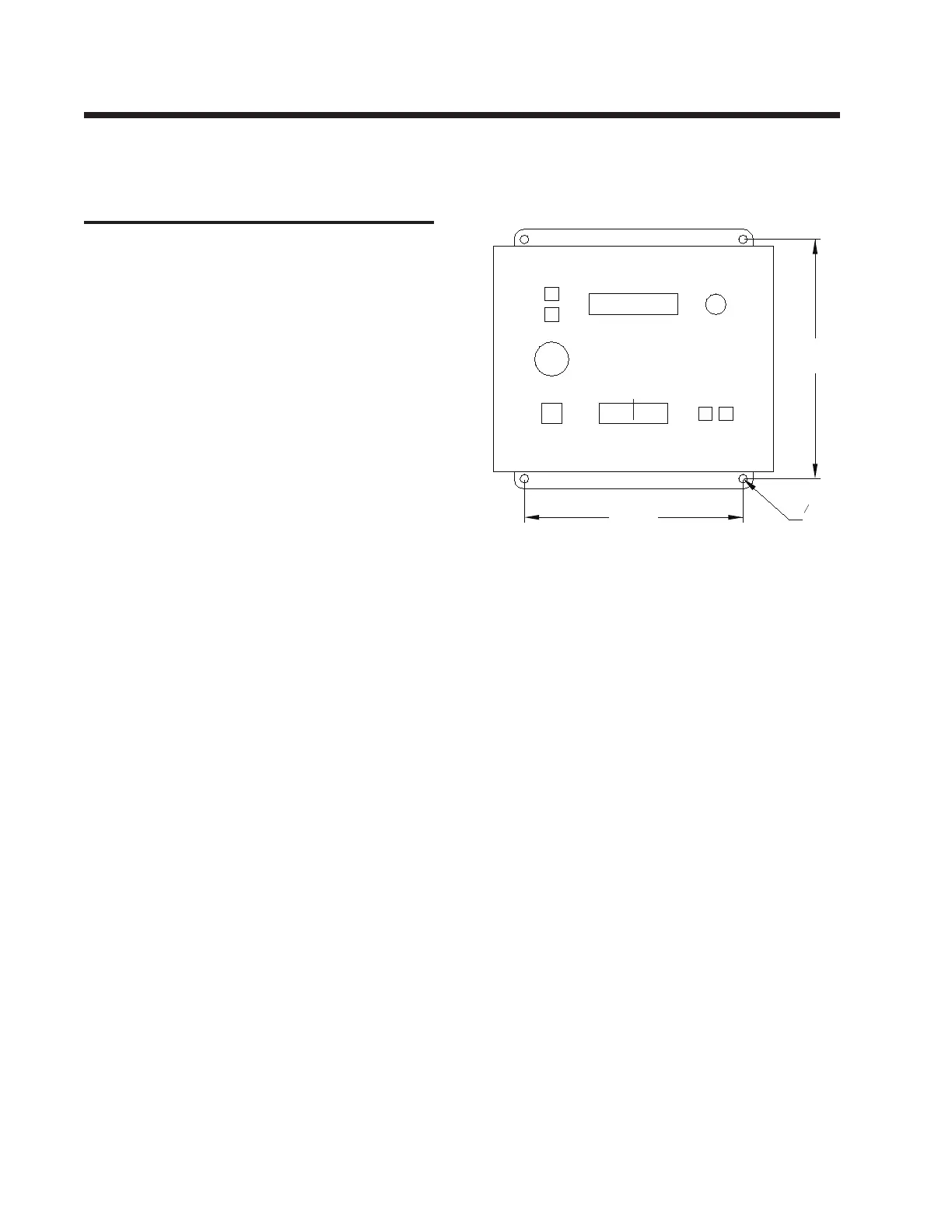

Dimensions:
Weight: 16 lb (7 kg)
Height: 8” (200 mm)
Width: 10” (250 mm)
Depth: 6” (150 mm)
8 ¾”
(222mm)
