11

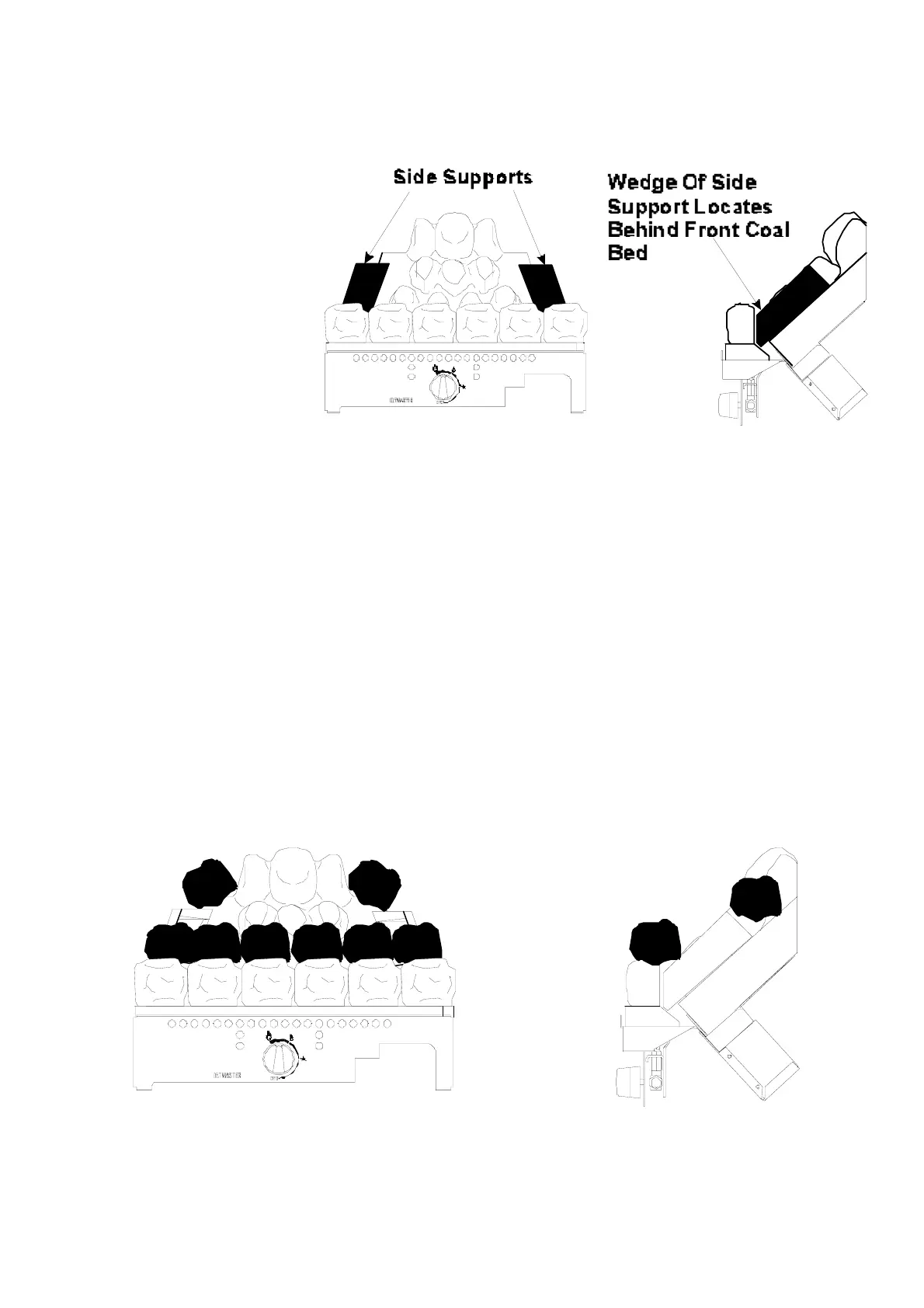

Place the left hand and right hand side coal supports onto the rear coal bed so that the wedged
slope is towards the front. They should locate behind the front coal bed with the flat sections facing
down and against the sides of the chairbrick.
Place the fire front in position without the ash pan cover. See Fig. 3.
The Regency Black Front and Open Black Front are free standing and when fitted should stand on
the hearth up against the front of the burner tray. On the Remote Control option the fire front will be
spaced away from the front of the burner tray by approx 20mm.
THIS APPLIANCE MUST BE SECURELY FIXED TO THE HEARTH THROUGH THE FRONT LEGS.
NOTE :- For clarity of the coal lay diagrams the fronts are not shown fitted to the burner.
The diagrams shown are of the manual controlled burner.
Lay a first row of :-
16”E / 16” - 6 coals + 2 in recess 18” - 7 coals + 2 in recess
Position these coals behind the front row of coals attached to the front coal bed. These coals should
bridge between the front row of coals and the rear coal bed. Then, place 1 coal each side in the
recess at the top of each side support.
