Jetson BOLT

20
1. 2. 3.
LOCKING RING
LATCHLOCKING RING TAB

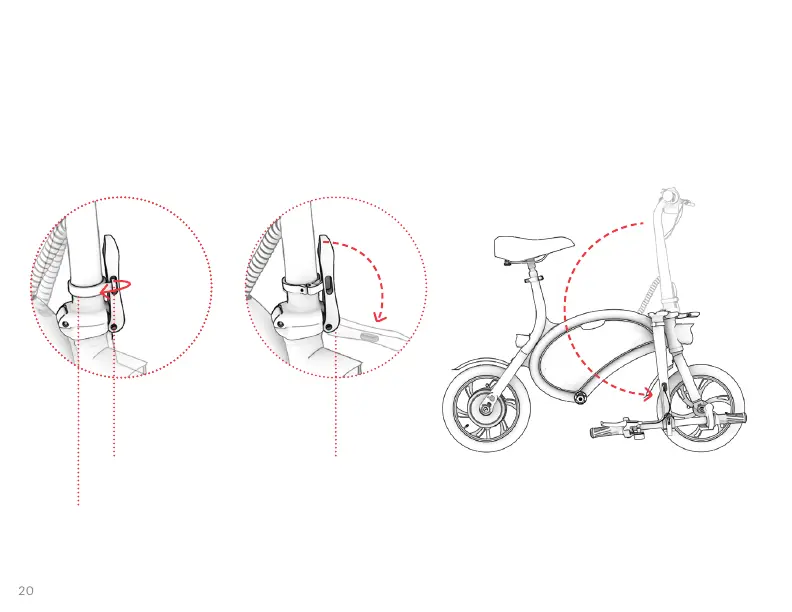

HOW TO FOLD:
1. ROTATE THE LOCKING RING COUNTERCLOCKWISE AROUND THE STEM UNTIL THE TAB CLEARS THE TAB SLOT IN
THE LATCH.
2. WHILE HOLDING THE STEM STEADY WITH ONE HAND, USE THE OTHER HAND TO PULL THE LATCH OPEN.
3. GENTLY LOWER THE HANDLEBAR DOWN TOWARDS THE RIGHT SIDE OF THE BOLT.
