TO UNFOLD

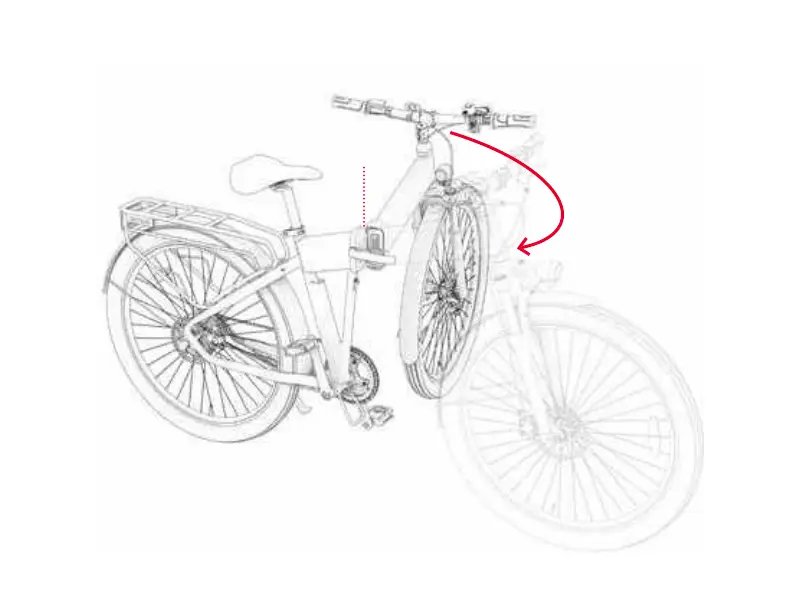

1. PIVOT THE FRONT OF THE BIKE AROUND THE HINGE POINT UNTIL THE FRONT AND BACK OF THE FRAME FORM A
STRAIGHT LINE.
IMPORTANT: TAKE CARE WHEN UNFOLDING PRIOR TO ASSEMBLY AS THE HANDLEBAR WILL ONLY BE SEMI-ATTACHED.
FOLDING HINGE
POINT
