5. PLACE THE CLAMP COVER ONTO THE CENTER OF THE HANDLEBAR SUCH THAT:
• THE 4 HOLES IN THE COVER ARE ALIGNED WITH THE FOUR HOLES IN THE CLAMP BASE.
• THE COVER IS SNUG OVER THE CURVE OF THE HANDLEBAR.

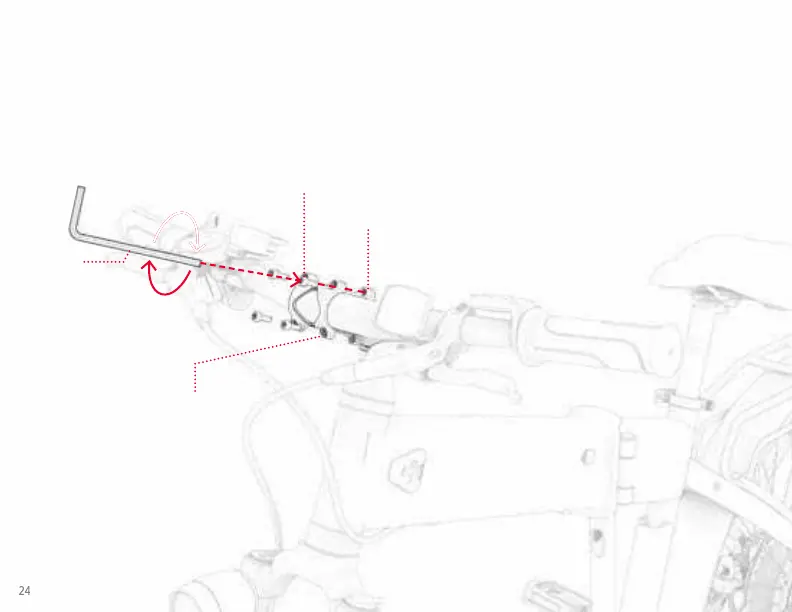

6. REINSERT THE 4 BOLTS INTO THE 4 HOLES ON THE FRONT OF THE CLAMP COVER. WHILE HOLDING THE HANDLEBAR AND
CLAMP COVER IN POSITION, TIGHTEN THE BOLTS BY ROTATING THEM CLOCKWISE WITH THE ALLEN KEY.
4MM
ALLEN
KEY
BOLTS
(X4)
CLAMP BASE
CLAMP COVER
