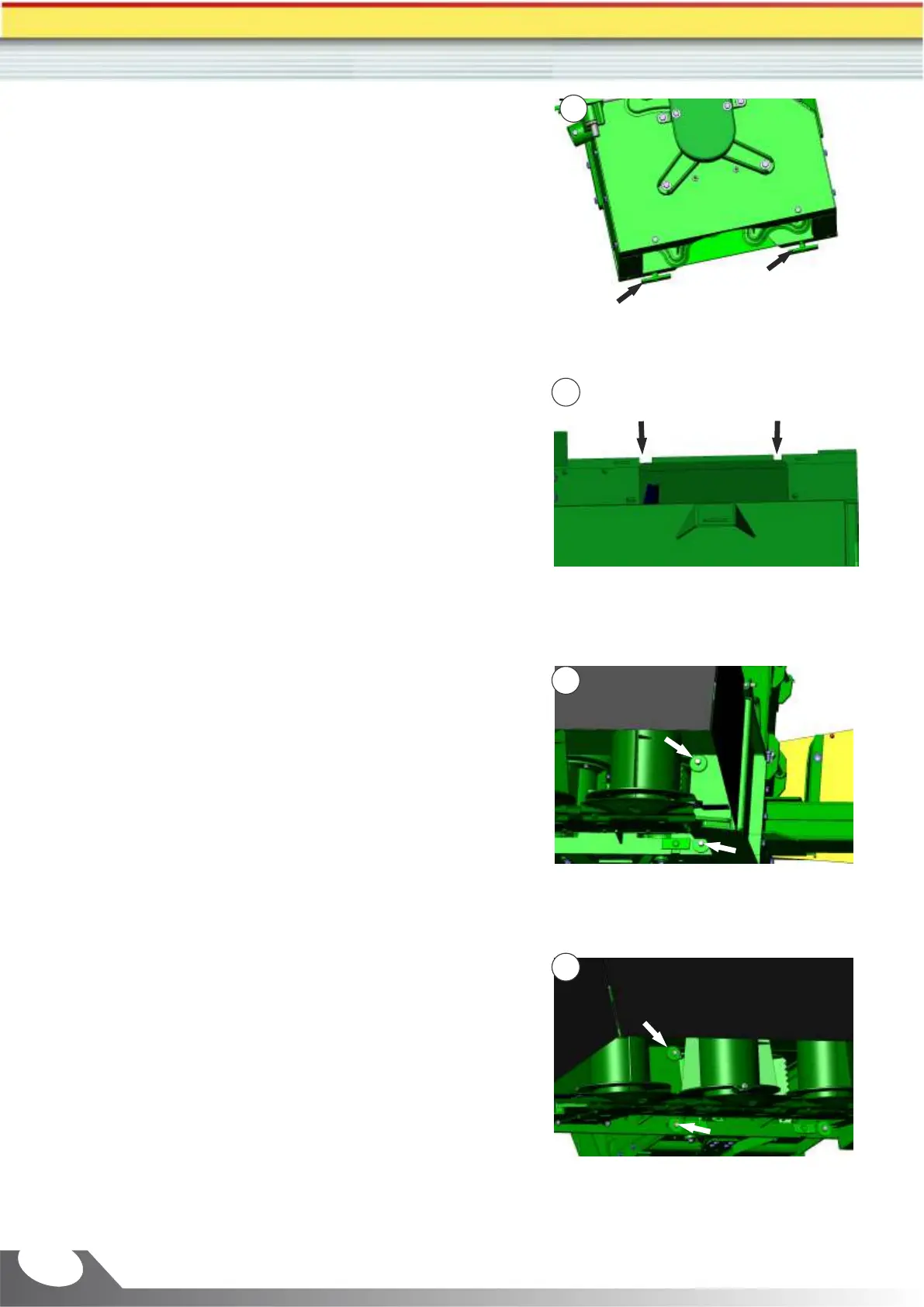

d) After following the 3rd step, remove the aligners and
install the pins 1 and 2 on the platform harvester,
according to the Figure 4.
e) Fit the points 3 and 4 of JF 1300 S2 in 1 and 2 of the
harvester (Figure 5).
f) Tighten the screws on the right of the platform,
indicated with 1 and 2 as Figure 6.
g) Tighten the screws on the left side of the platform,
indicated with 3 and 4 as Figure 7.
