JF 1300 S2 - Preparation of the Machine; Coupling: Pulley and Belts

4 - Preparation of the machine
4.1 - Coupling - pulleys and belts version
The machine must be turned off when you are going to couple the JF 1300 S2
with the forage harvester.

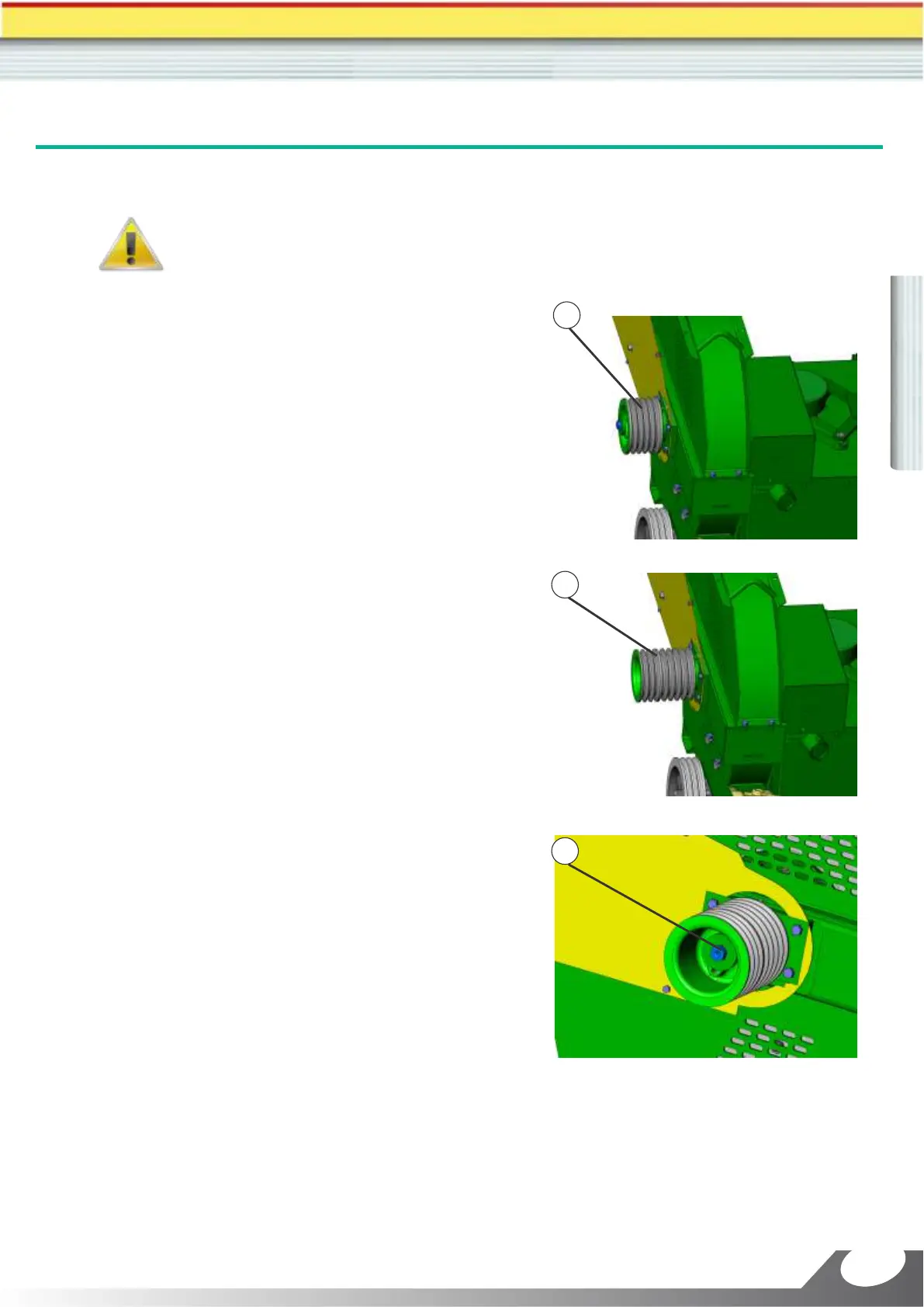

a) Remove the rotor puley 5 channels - (Figure 1) and
place the pulley 8 channel (Figure 2).
b) After placing the pulley 8 channels, tighten the screw
as internal (Figure 3).
c) Tighten the bolt.
2
3
1
15
OPERATION TECHNICAL MANUAL - JF 1300 GRASS HEAD SERIES 2
