JF 1300 S2 - Coupling: Cardan Shaft

4.2 - Coupling - cardan shaft version
The machine must be turned off when you are going to couple the JF 1300 S2
with the Forage Harvester.
1
1
2

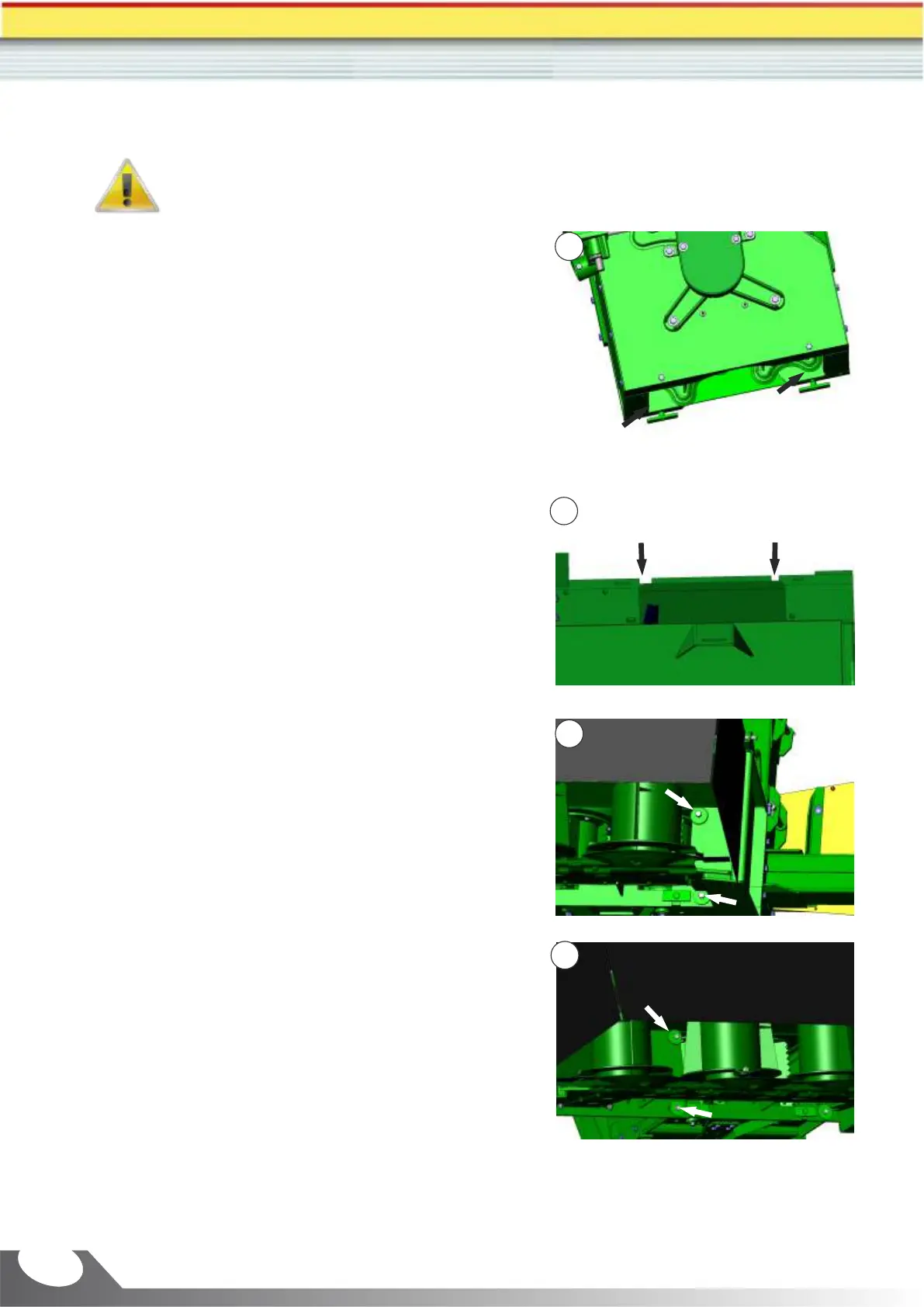

a) Take off the alligners of the Forage Harvester, and
install the pins 1 and 2 in harvester platform as
(Figure 1).
b) Fit the points 3 and 4 of your JF 1300 S2 in the pins 1
and 2 in harvester platform as (Figure 2).
c) Tighten the screws on the right side of the platform,
indicated with 1 and 2 as (Figure 3).
d) Tighten the screws on the left side of the platform,
indicated with 3 and 4 as (Figure 4).
3
4
2
1
3
4
1
2
3
4
