When you finish the coupling, make sure
to put back all the protection covers.

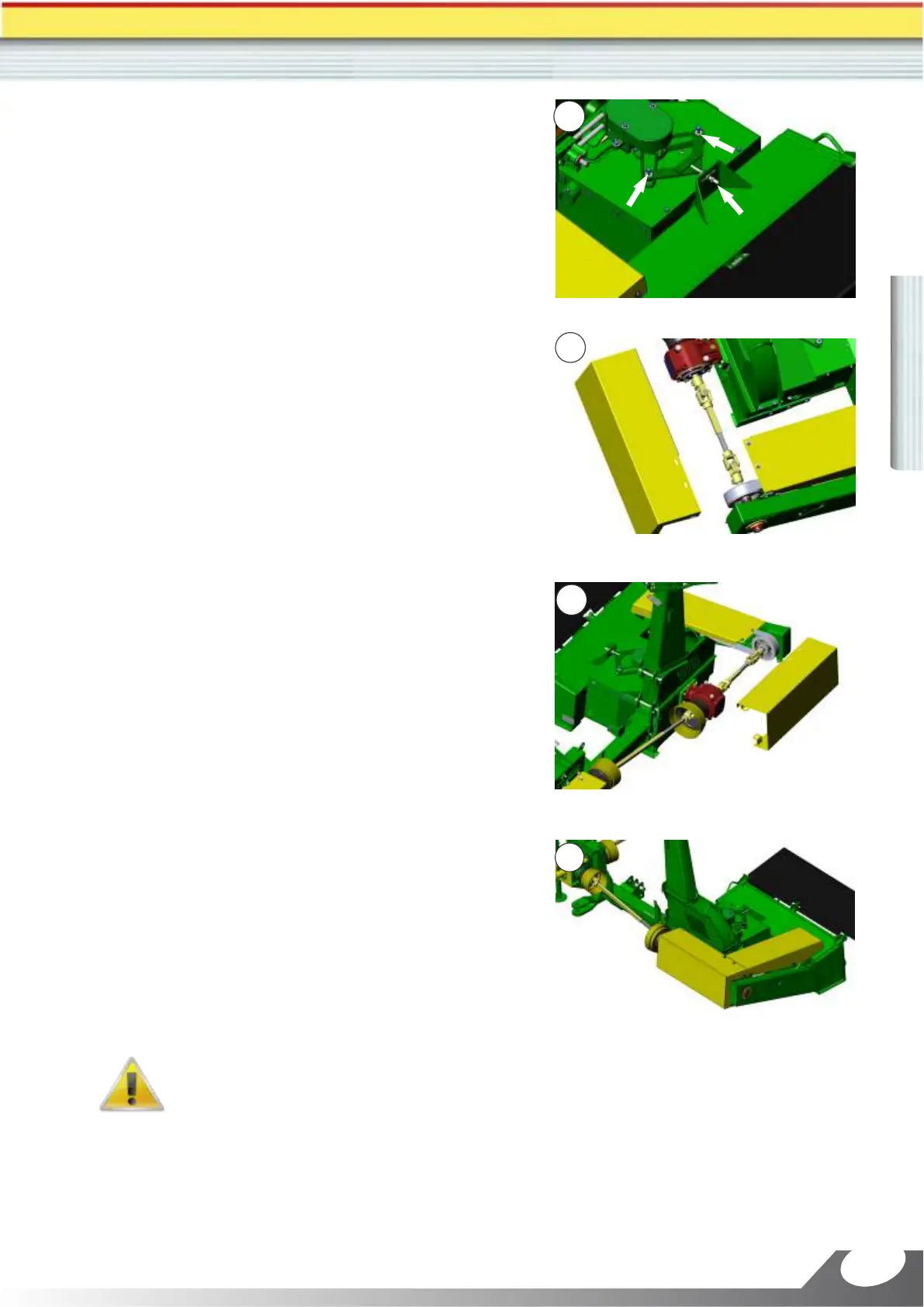

e) Tighten the screws on the top side of the platform,
indicated with 5, 6 and 7 as (Figure 5).
f) Connect the cardan shaft between the rotor of the
forage harvester with the pulley platform JF 1300 S2.
g) Check the alignment of the pulleys, and turn the bolt
to strain the belts.
h) Put back the protection covers.
5
6
7
6
5
7
8
19
OPERATION TECHNICAL MANUAL - JF 1300 GRASS HEAD SERIES 2
