18
E01 Isolation error
Insulation Problem of PV panel
E02 Ileak error
GFCI Fault, leakage current is too high
E03 Grid fault
Grid voltage/frequency is out of range
Inverter fault
E04 Coherence error
Consistent Fault
E05 Over temperature
Internal temperature abnormal
E06 Relay failure
Output relay Fault
E07 DCinj failure
Output Current DC Offset too high
E08 EEPROM failure
EEPROM Fault
E09 Com. failure
Communication Fault
E10 DC bus OV.
DC Bus over-voltage
E11 DC bus UV.
DC Bus under-voltage
E12 Vref error
2.5V Reference Voltage Fault
E13 DC sensor fault
DC current sensor fault
E14 GFCI failure
GFCI Device is damaged
5. COMMUNICATIONS
5.1 Data communication with RS232

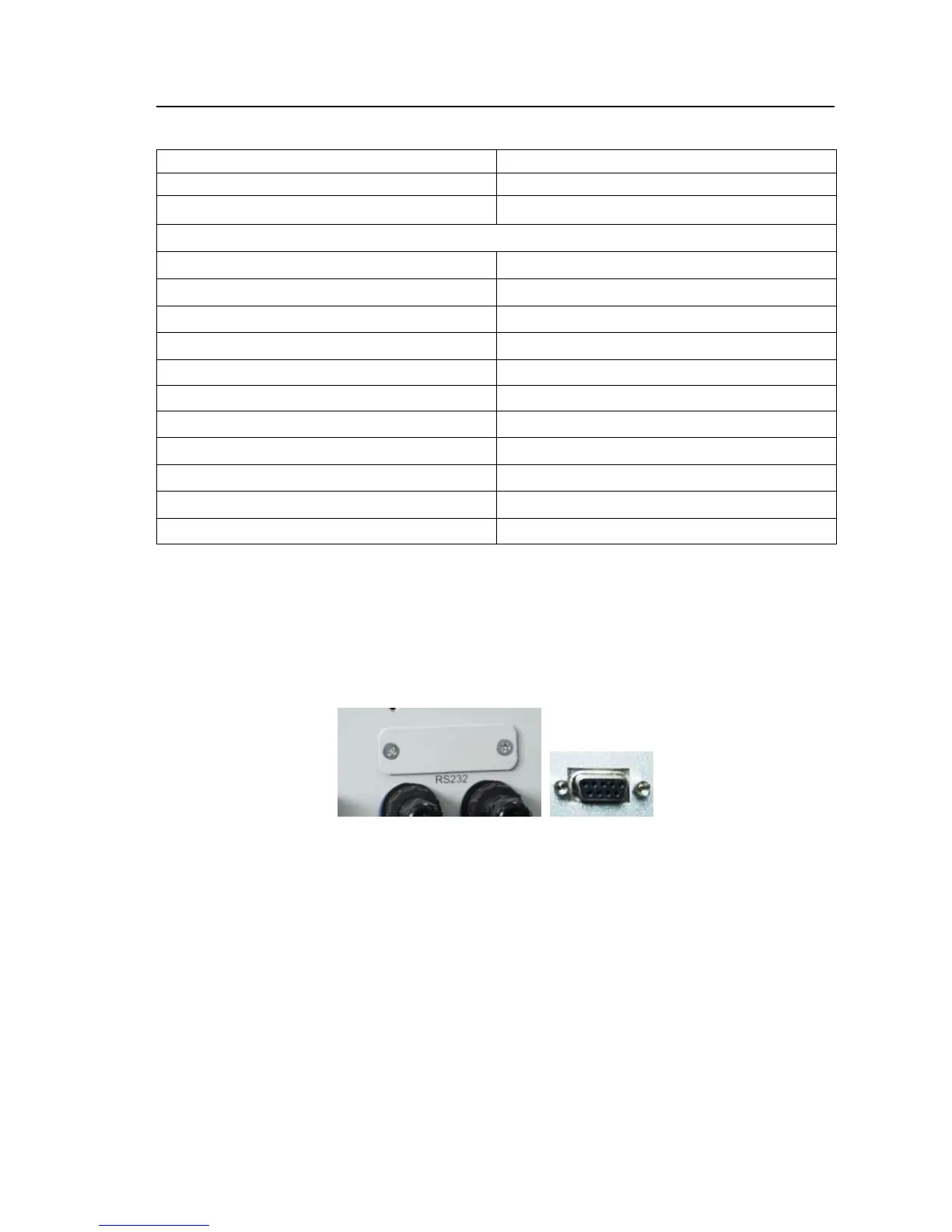

Fig. 10 RS232 serial port
Open the cover of RS232 serial port, connect solar Inverter and computer by
RS232 cable. By the way, the communication distance should be below 10m.
If your computer doesn't have any RS232 port, only has USB ports, please buy a
RS232-USB converter for the communication in the local market.
5.2 Data communication with RS485 (optional)
5.2.1 RS485 Serial Port
The RS485 is used for several inverters’ communication. Ethernet cable is applied
to connect each inverter herein. Only three cables in ethernet cable are applied:
two signal ones and one for ground connection.
