For JSI-6000TL/-S For JSI-5000TL/-S

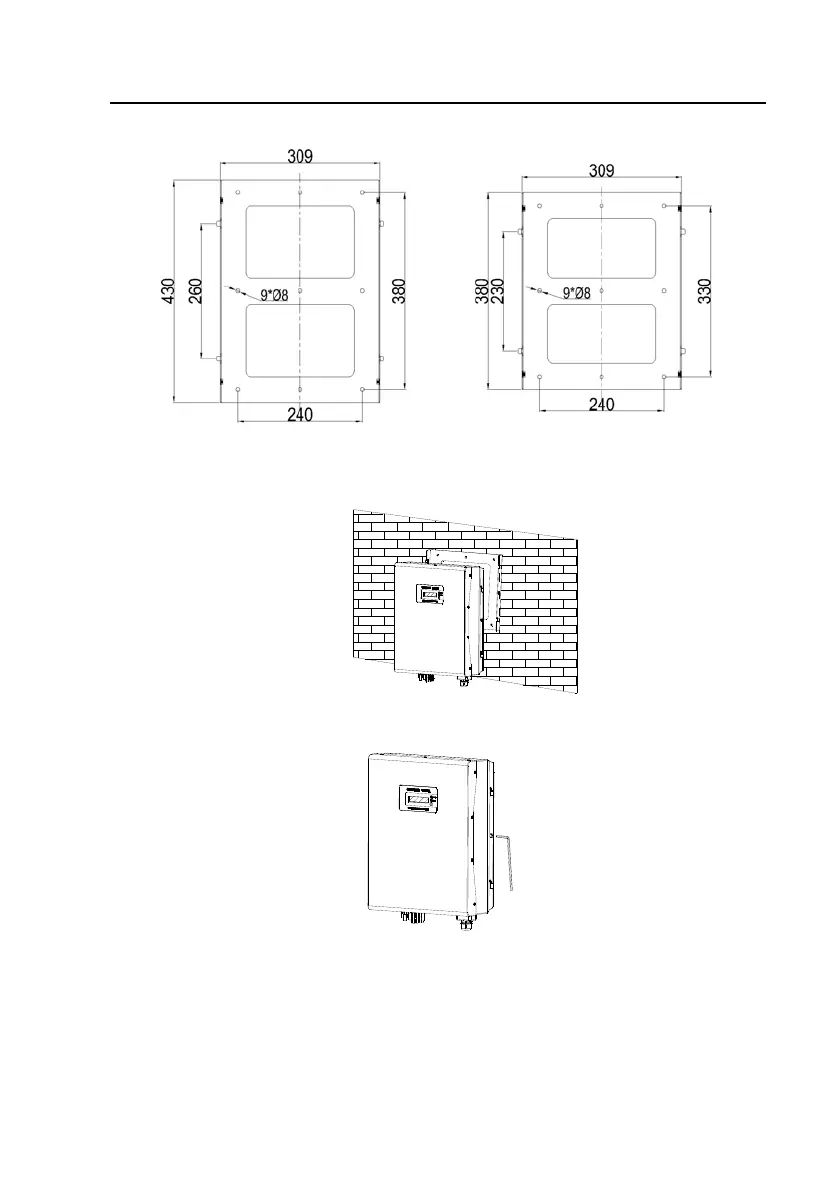

Fig.3 The size of mounting frame
Fig.4 Hang inverter to mounting frame
Fig.5 Fix safety-lock screws
The customer is encouraged to perform the following checks:
 Do not install the solar inverter on a gradient surface.
 Check the uppe
r
straps of sola
r
inverte
r
and ensure it to fit on to the bracket.
 Ensure safety-lock screws (M5 socket head cap screws) to insert into the
mounting frame through inverter’s heatsink.
