USR-TCP232-410S User Manual
4 / 46
USR-TCP232-410S Serial Device Server is used to data bidirectional transparent transmission from
serial to Ethernet. User doesn't need to consider details because protocol conversion is made within the
server. The serial side is serial data and the Ethernet side is TCP/IP data packet, which works through simple
configuration on built-in webpage or setting software.
Any question during testing, please submit it on our technical support center: http://h.usriot.com
1.1. Hardware Testing Environment
Connect 410S (shorten for USR-TCP232-410S) ‘COM with PC’s via serial cable(or USB to serial cable).
Connect network interface between 410S’ and PC’s via network cable.
Then supply power for 410S with our AC adapter((make sure you can supply at least 200mA current at
DC5V) ).

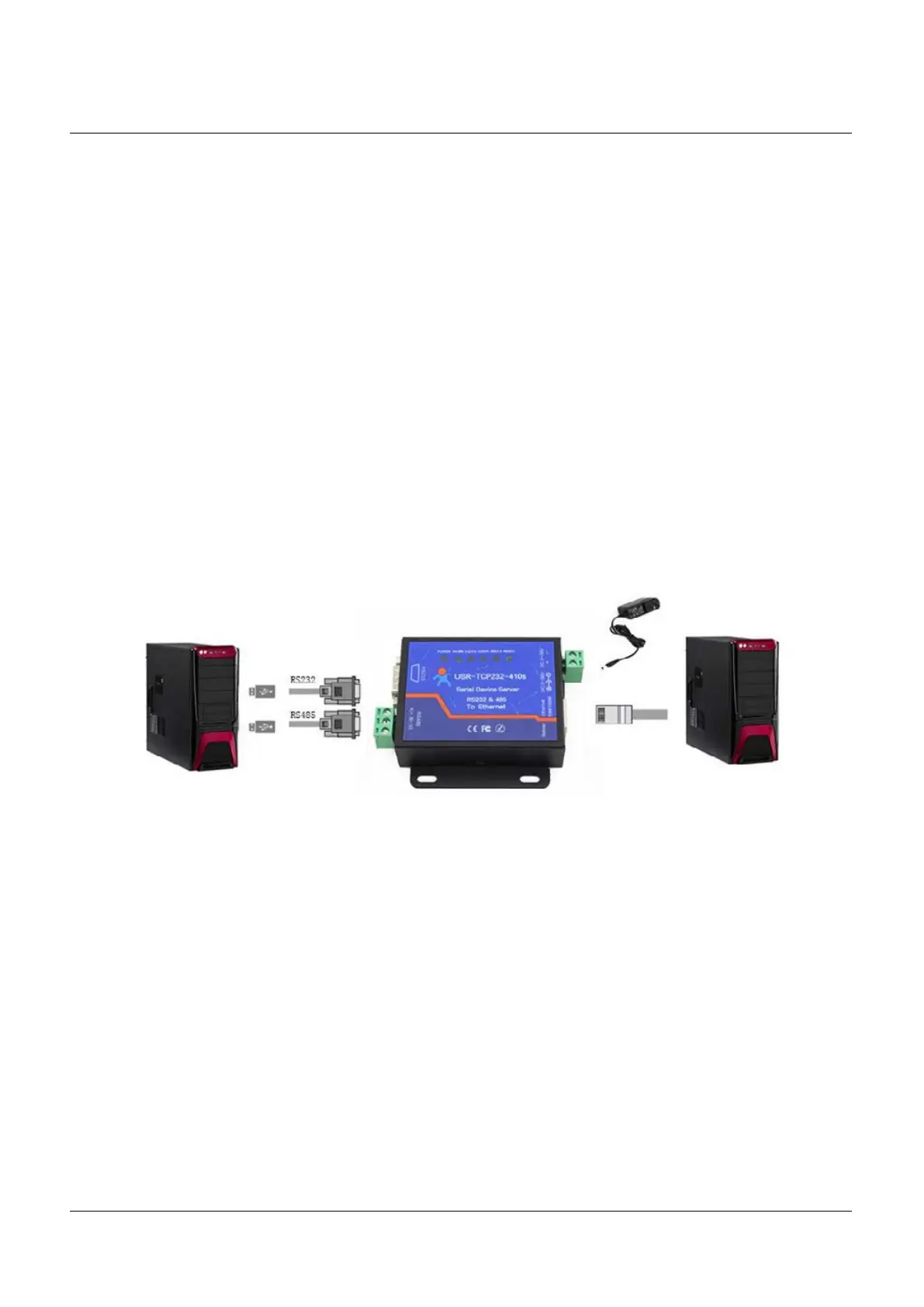

The below picture will show you the connection.
Hardware Connection
Notes:
AC adapter and connection cable are provided by USR IOT.
RS232 is involved, no connection for RS485.
PCs in above picture is the same one.
1.2. Data Transmission Testing
Check PC setting after hardware connection.
1) Turn off PC Firewall and anti-virus software.
2) Disable the network card nothing to do with testing and just leave one local connection.
3) As for 410S connect PC directly, should set static IP for PC, which in the same network segment
with 410S, like 192.168.0.201.
