USR-TCP232-410S User Manual
19 / 46
3. Save the parameters and restart 410S.
4. Open serial to send data, then the data can be submitted onto our webpage server.
5. For more, please refer to Application Case on USR Website: www.usriot.com.

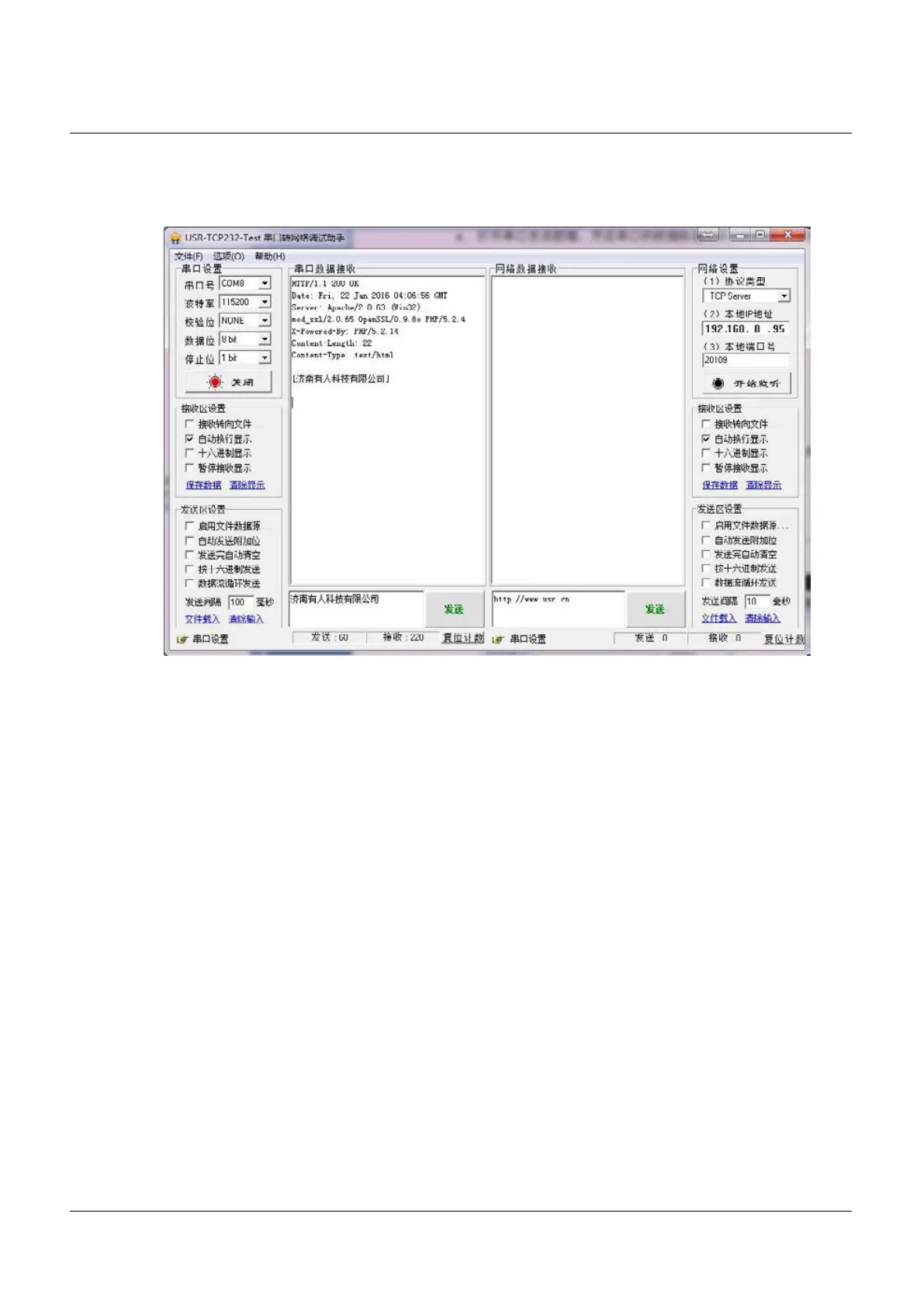

HTTPD Client Test Screenshot
4.1.7 USR-VCOM Application
It solve the transmission problem of traditional device PC software working as COM. USR-VCOM
support receiving data from set COM and send serial data out as network.
How to connect 410S with Visual COM.
1. Set 410S TCP Server
1) Open USR-VCOM software, click “Add COM” and select COM 2 (avoid existed COM),
Set protocol: TCP Client, Destination IP and port same with410S’, Note: fill the device name.
2) “OK” to check whether connection is built. “Connected” shows ready for data transmission.
2. More details, please refer to http://www.usriot.com/?s=vcom
