S erial to Ethernet module USR-TCP232-T24 series http://en.usr.cn

Jinan USR IOT Technology Limited Page 15 of 53 tec@usr.cn

2.3.23

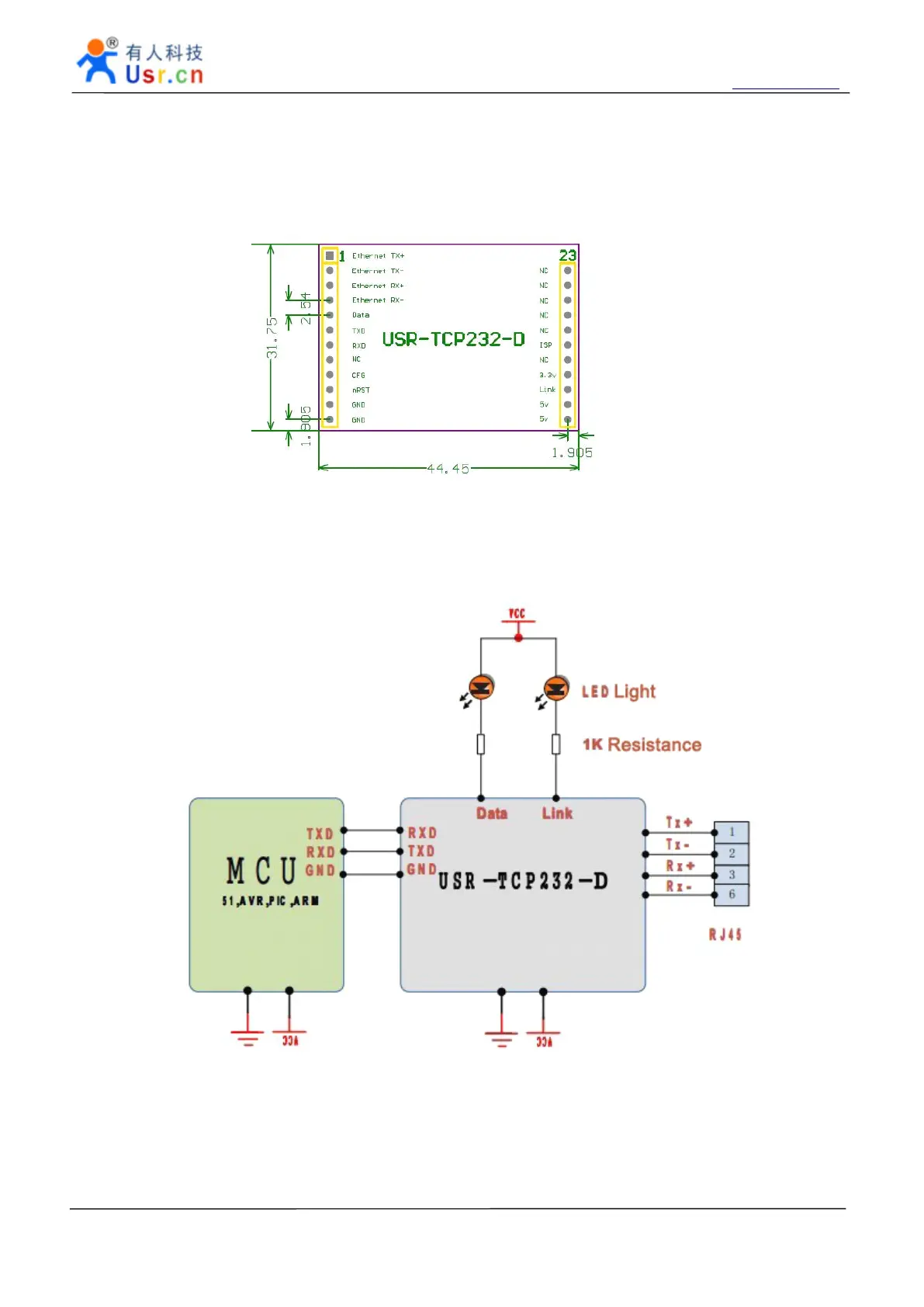

2.3.23 Mechanical

Mechanical

Mechanical Dimensions

Dimensions

Unit: mm

2.3.24

2.3.24 Connection

Connection

Connection Diagram

Diagram

Note:

Note: Isolation transformer has been on this module, so you need not to add Isolation transformer in

your RJ45 port.
