S erial to Ethernet module USR-TCP232-T24 series http://en.usr.cn

Jinan USR IOT Technology Limited Page 25 of 53 tec@usr.cn

2.6.23

2.6.23 Jumper

Jumper

Jumper usage

usage

usage Mechanical

Mechanical

Mechanical Dimensions

Dimensions

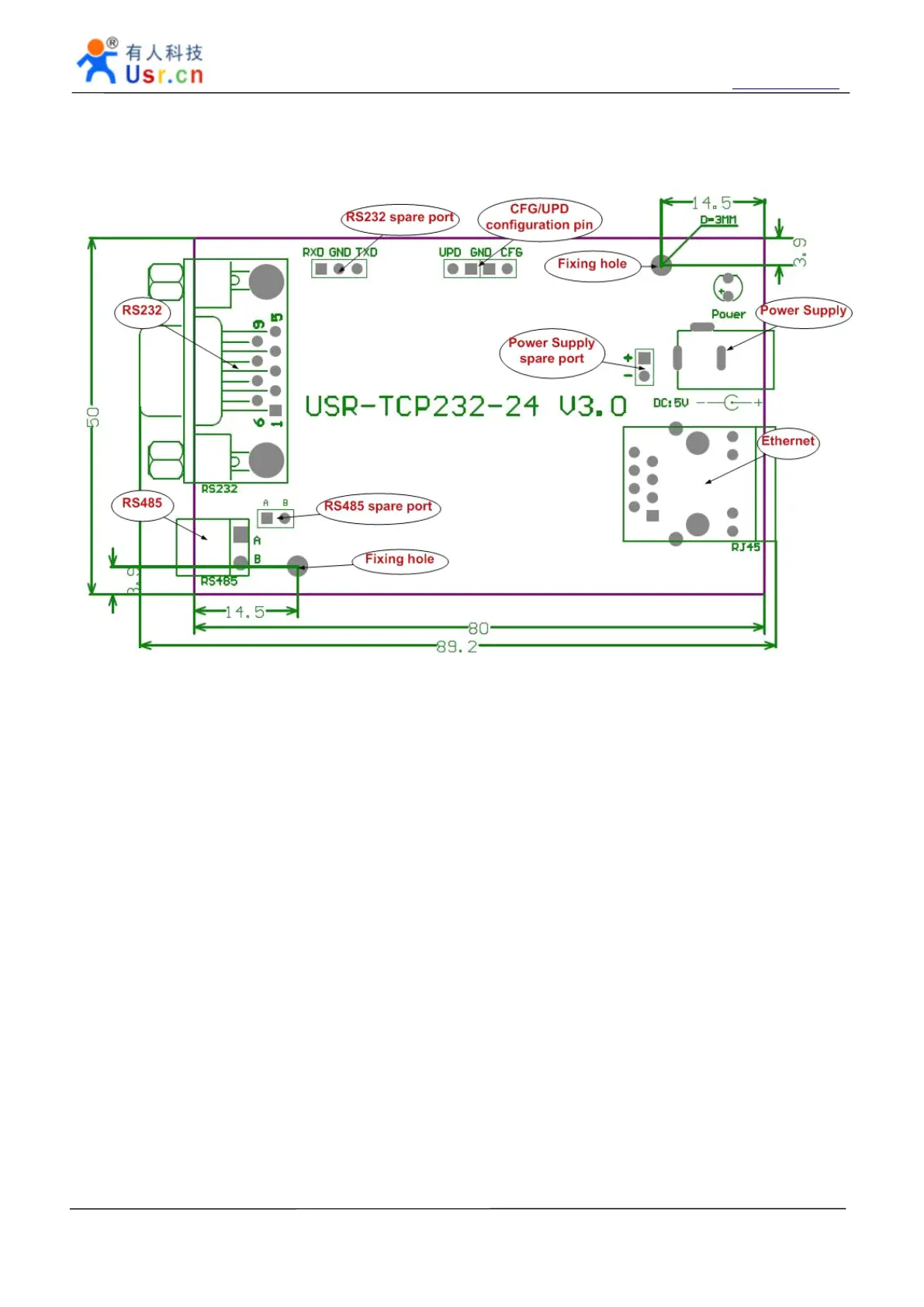

There are three jumpers and one Welding hole:

UPD: Update jumper, connect it and then power on the module to make module into update mode.

CFG: configuration jumper, when use RS232 for configuration, connect it to configuration mode ,and

leave it free to go work mode.

Notice: CFG is needed only When config via RS232, when config via RJ45, it is no use .
