S erial to Ethernet module USR-TCP232-T24 series http://en.usr.cn
Jinan USR IOT Technology Limited Page 40 of 53 tec@usr.cn
4.2
4.2
4.2
4.2 C
C
C
C onfigure
onfigure
onfigure
onfigure through
through
through
through RS
RS
RS
RS 232
232
232
232
In normal working condition, pulled down the CFG pin to enter the serial configuration state, through the
network configuration to be airborne CFG pin module set through the serial port to receive instruction and to

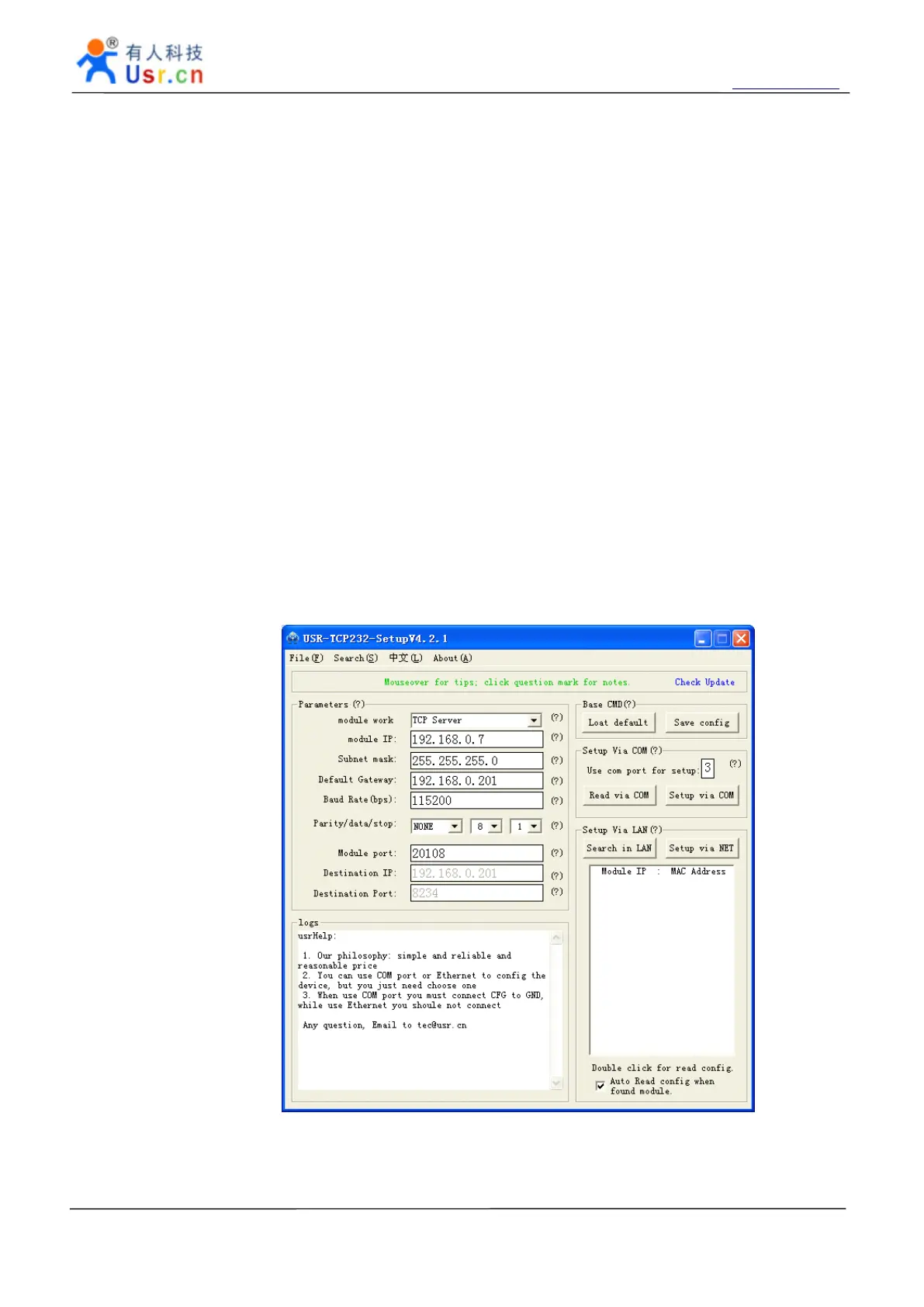

change the operating parameters . USR-TCP232-Setup software to be modified, as follows :
1.In ” use com port for setup ” fill in the correct COM number ;
2 . Click “ read via com ” ,t he left side will display the current configuration parameters, can modify the
parameters of the desired Settings ;
3 . Click “ setup via com ” ,t o complete the module configuration ;
4. After Setting, left CFG free or connect to VCC, module begin work.
4.3
4.3
4.3
4.3 C
C
C
C onfigure
onfigure
onfigure
onfigure through
through
through
through RJ45
RJ45
RJ45
RJ45
Under normal operating conditions, the module received through the network setting instruction, and
change the operating parameters . USR-TCP232-Setup software to be modified, as follows :
1. Click ” search in LAN ” ,t he left side will display the current configuration parameters, can modify the
parameters of the desired Settings ;
2. Click ” setup in net ” ,t o complete the module configuration .
Since 2011-08-02, the new version modules support Setup via RJ45.
