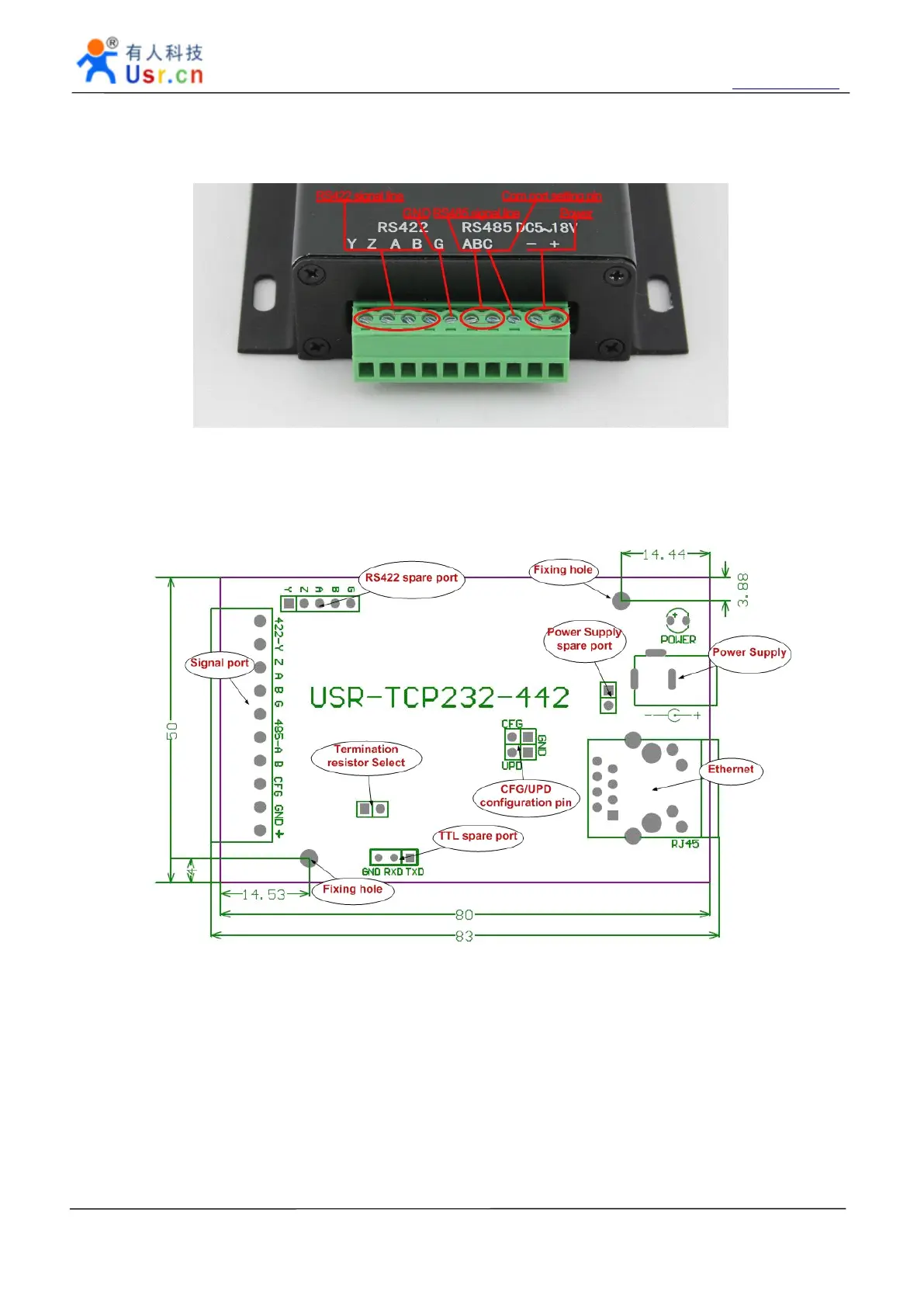

There are three jumpers and one Welding hole:
1. UPD: Update jumper, connect it and then power on the module to make module into update mode.
CFG: configuration jumper, when use RS232 for configuration, connect it to configuration mode ,and
leave it free to go work mode.
Notice: CFG is needed only When config via RS232, when config via RJ45, it is no use .
2. RS485 terminal resistance, the product is not added to the default state, if you want to use, please
use short circuit mo short answer the corresponding pin .
