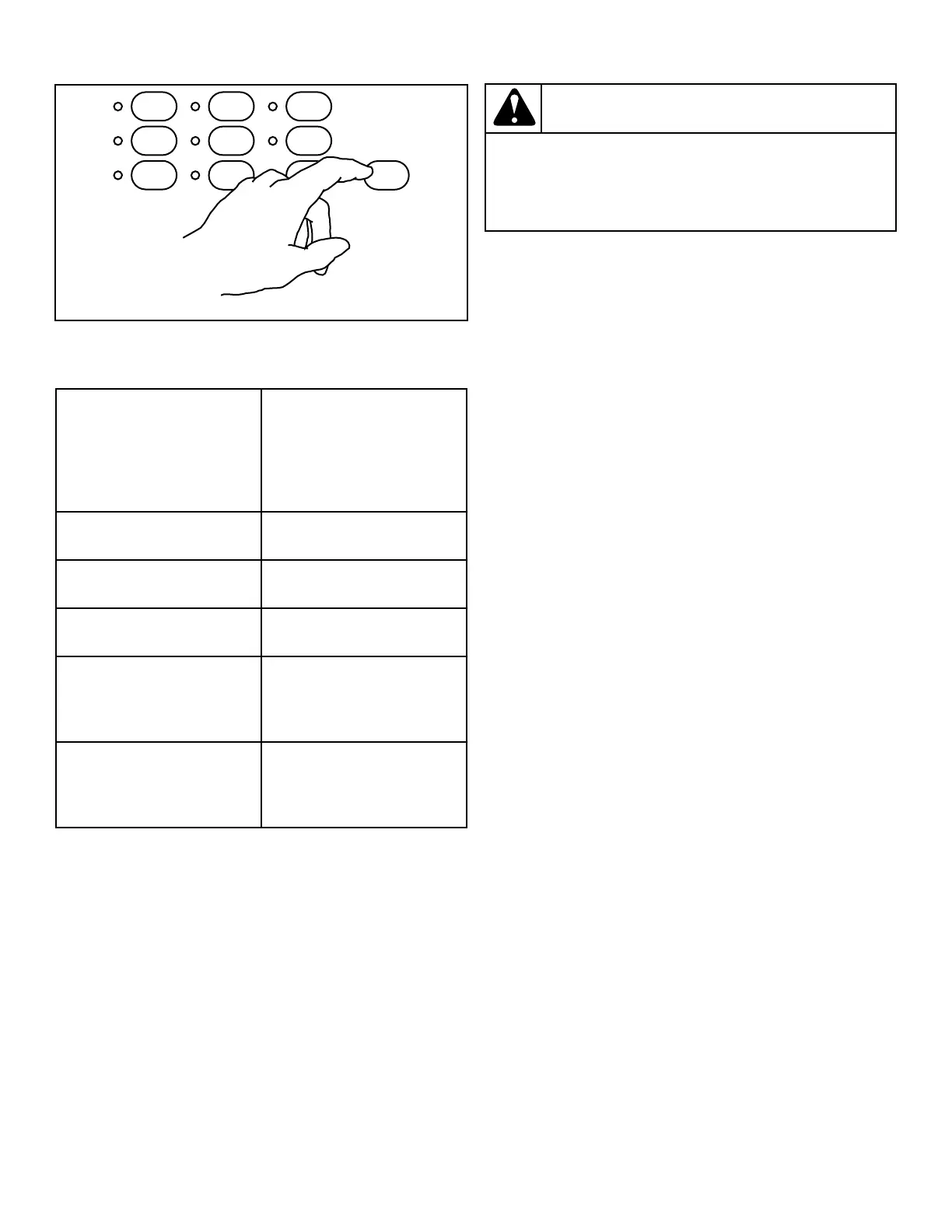

Figure 28
Indicator Lights
Coin On coin models, coin is lit to
prompt the user to insert coins
to satisfy the vend price. When
Coin is lit, the digits show the
vend price remaining to be sat-
isfied.
Wash Wash is lit during the Wash
portions of the cycle.
Rinse Rinse is lit during the Rinse
portions of the cycle.
Spin Spin is lit during the final spin
portion of the cycle.
Door Locked Door Locked is lit whenever
the door is locked. The door
cannot be opened when this
light is on.
Start Start flashes one second on
and one second off when the
full vend price has been satis-
fied.
IMPORTANT: If washer fails to operate properly after
installation, make sure electrical service and water
supply faucets are turned on. Are all the controls prop-
erly set? Have a qualified service person refer to the
wiring diagram (located inside of washer control cabi-
net) and check for broken, loose or incorrect wiring.
NOTE: Once a cycle has started, the door can only be
opened by first unplugging the power cord and waiting
one minute.
WARNING
To reduce the risk of bodily injury, do not remove
laundry from washer until all lights are out, and all
moving parts have stopped.
W092
Operation
©
Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
23 Part No. 805412R7
