1. Pump
Reinstallation of Shipping Materials
To prevent damage while moving the unit, the shipping materials
MUST be reinstalled.
1. Disconnect washer from electrical supply.
2. Remove two screws at bottom of front access panel.
3. Rotate bottom of panel out and remove panel.
4. Attach shipping brace to weight and base using four bolts and
washers. Refer to Figure 29 .
5. Reinstall front access panel.
6. Go to rear of washer to install rear shipping bolt, washer,
spacer assemblies.
7. Insert shipping bolt assemblies into each shipping bolt hole.
Refer to Figure 30 .
8. Tighten bolt while pressing washer against rear panel to en-
sure spacer is fully inserted.

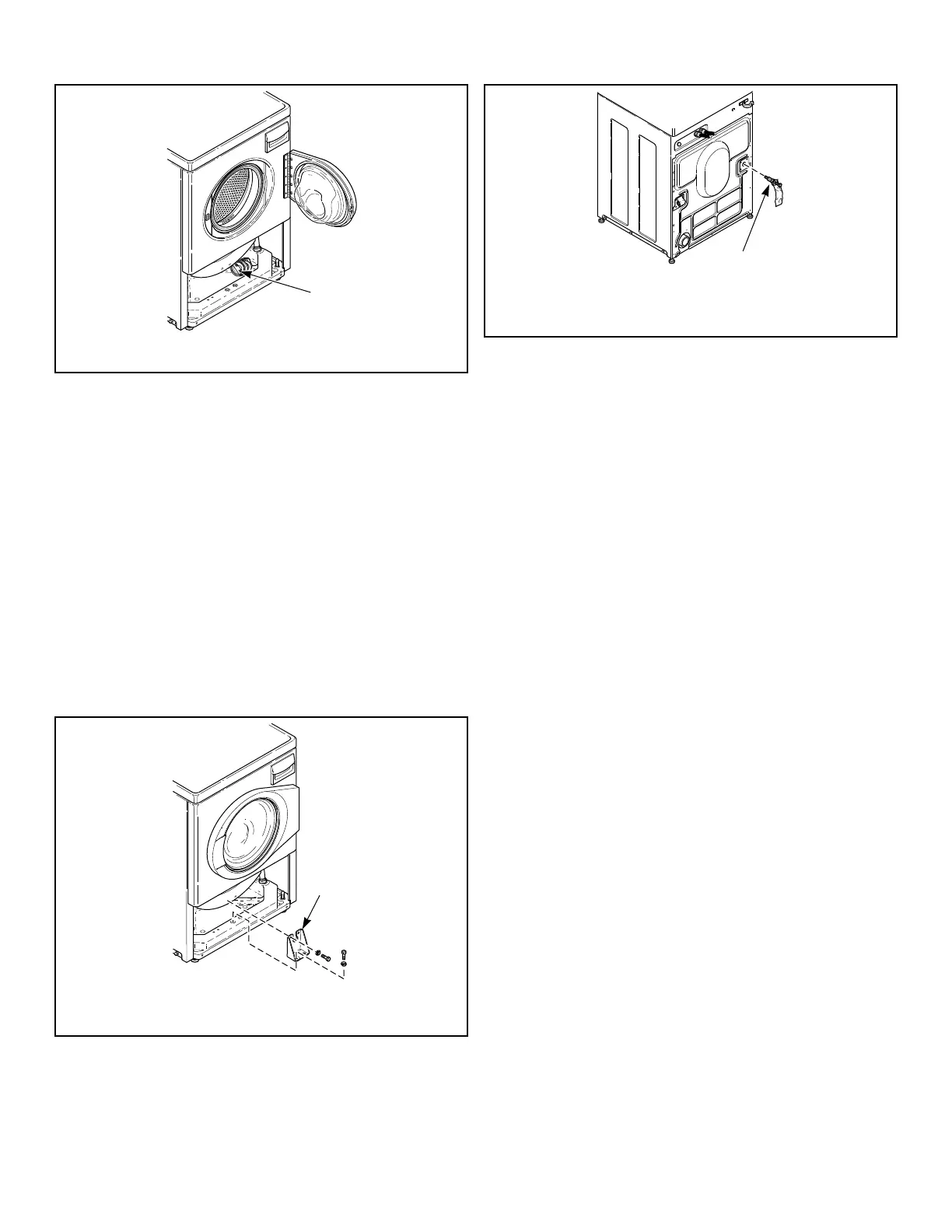

1. Shipping Brace
Figure 29
1. Shipping Bolt Assembly
Figure 30
