JLA 98 - Page 9

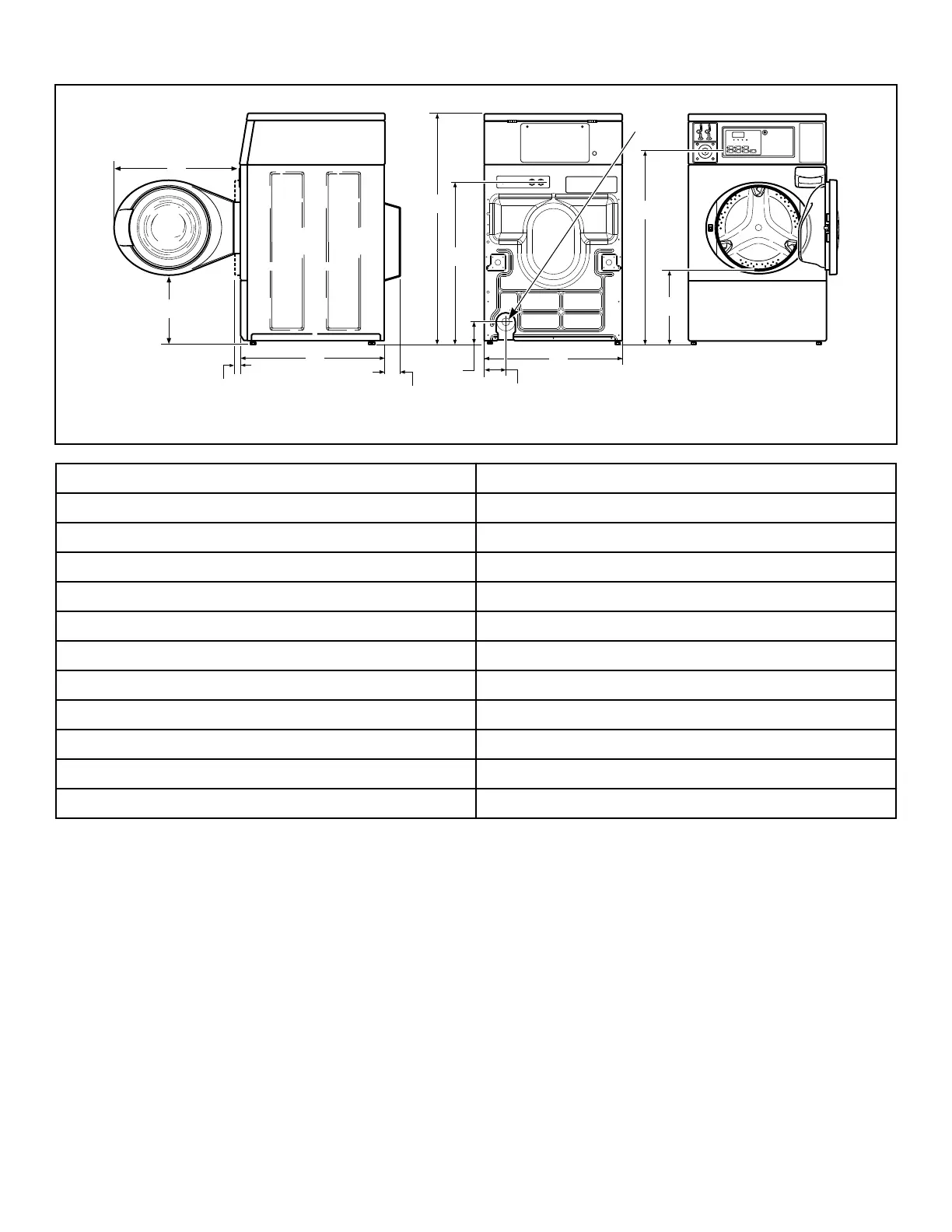

Models With Gravity Drain
FLW2334N_SVG
J
K
L
I
H
G
F
E
D
1
C
B
A
1. 1.5 in. [38 mm] Inside Diameter; 1.86 in. [47 mm] Outside Diameter
A 24 in. [610 mm]
B 44.34 in. [1126 mm]
C 32 in. [813 mm]
D 36.94 in. [938 mm]
E 14.6 in. [371 mm]
F 26.875 in. [683 mm]
G 4.2 in. [107 mm]
H 4.1 in. [104 mm]
I 2.04 in. [52 mm]
J 27.73 in. [704 mm]
K (with door closed) 1.59 in. [40 mm]
L 13.1 in. [333 mm]
Dimensions and Specifications
©
