JLG 1532E2 - Electrical Schematic - Non Proportional Control (Sheet 2 of 2)

SECTION 3 - TROUBLESHOOTING
3120855 – JLG Sizzor – 3-5
1
8
7
0
117
C

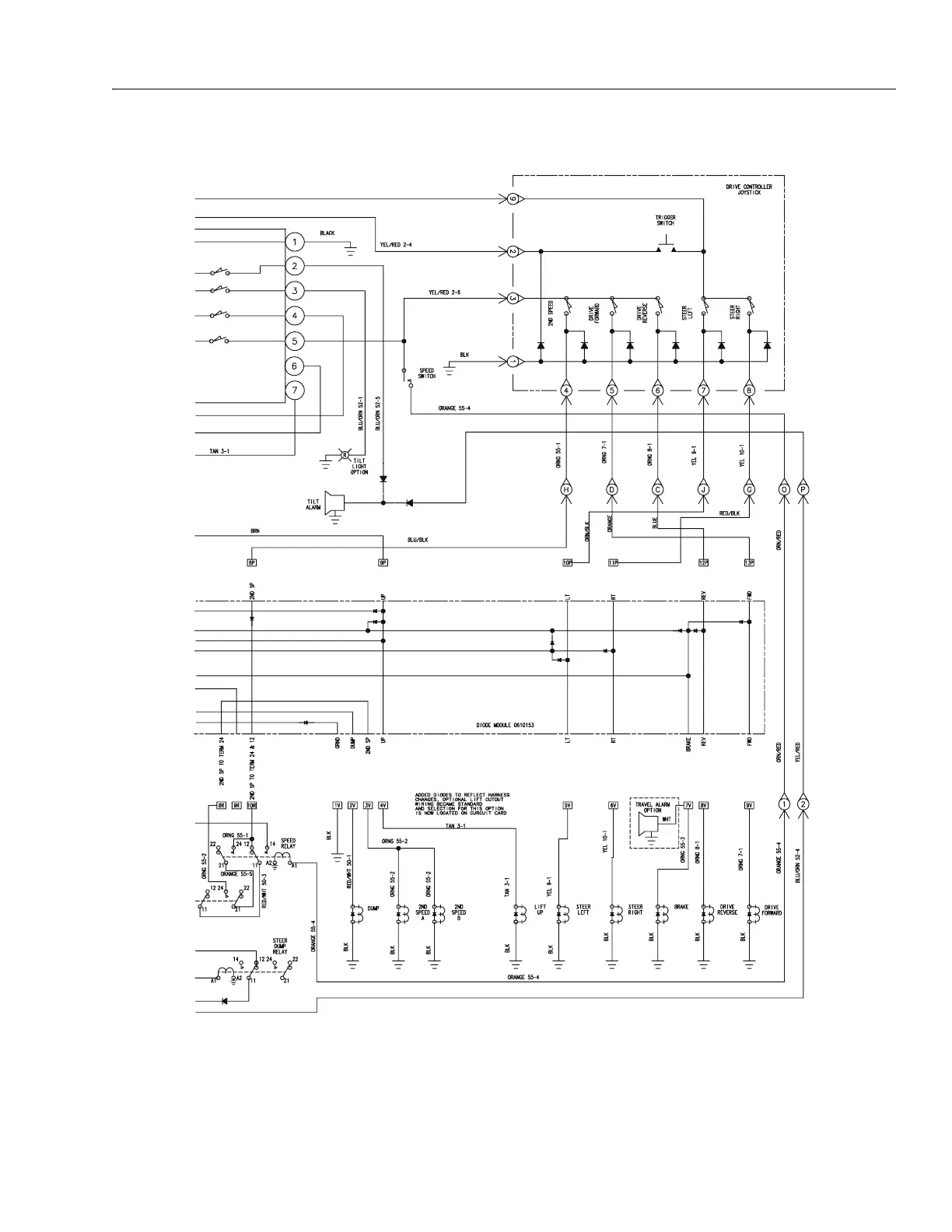

Figure 3-2. Electrical Schematic - Non Proportional Control (Sheet 2 of 2)
