SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-15

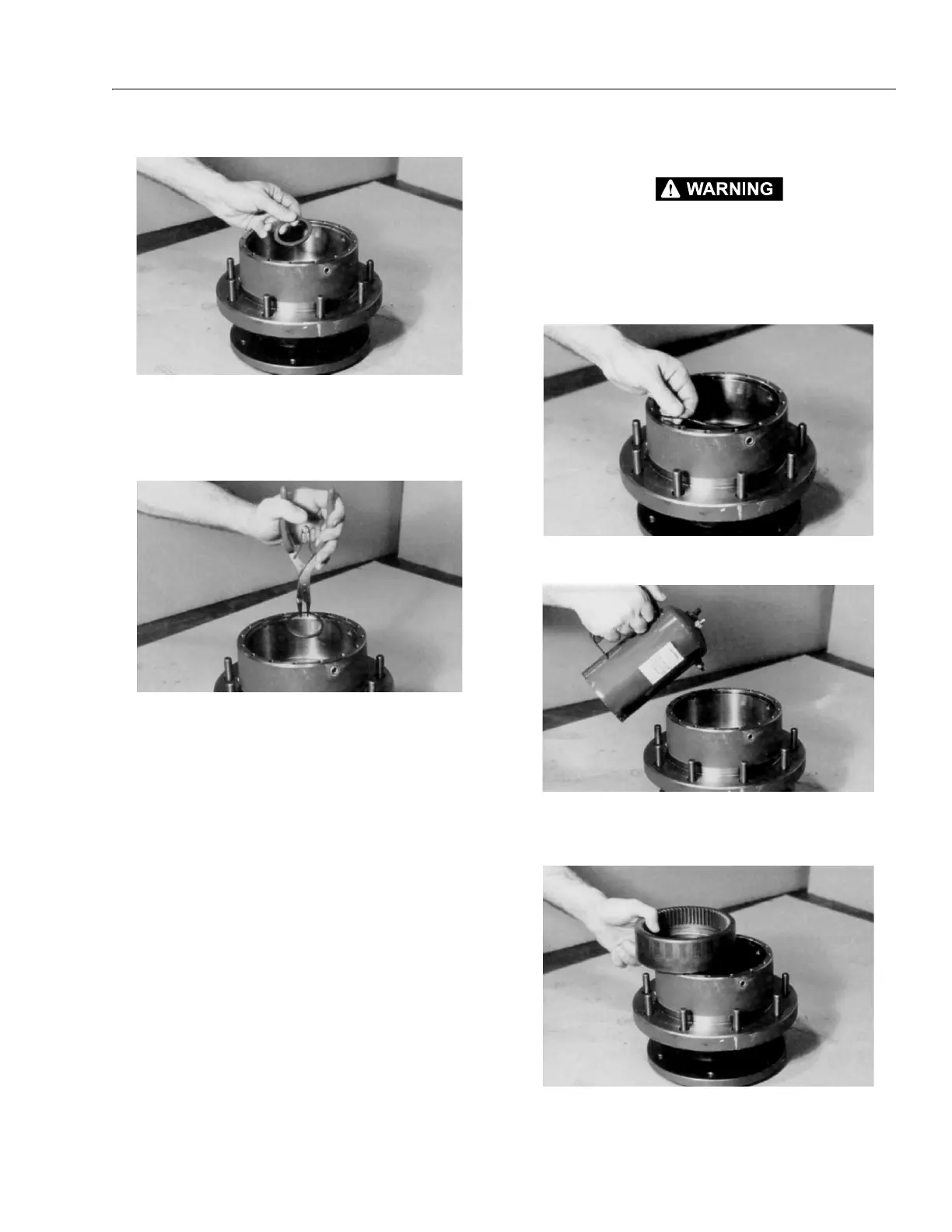

9. Place spacer (1H) onto spindle (1A) in hub (1G).
NOTE: Make sure the retaining ring is securely seated in the
groove.
10. Place retaining ring (1I) over the spacer onto spindle
(1A) in hub (1G).
11. At this point the hub-spindle sub-assembly is complete.
Main Assembly
BEWARE OF SHARP EDGES IN COUNTERBORE WHEN INSTALLING THE O-RING
1. Grease o-ring (5) and place it into the counterbore in
hub (1G).
NOTE: O-ring may be stretched or pinched together to make it fit
the counterbore exactly.
2. Oil all exposed surfaces inside hub (1G).
3. Place internal gear (2) into hub (1G) so that its internal
splines mesh with the external splines of spindle (1A).
Oil internal gear (2).
