3.5 Cable type selection requirements
The following table is converted into the diameter size of copper wire according to the
current level. The actual metal diameter size of wire wire is larger than the data in the
table
：
Current rate
50A
100A
150A
200A
Wire
diameter/mm2
10
20
30
40
AWG
7
4
2
1
Four Operation Instruction

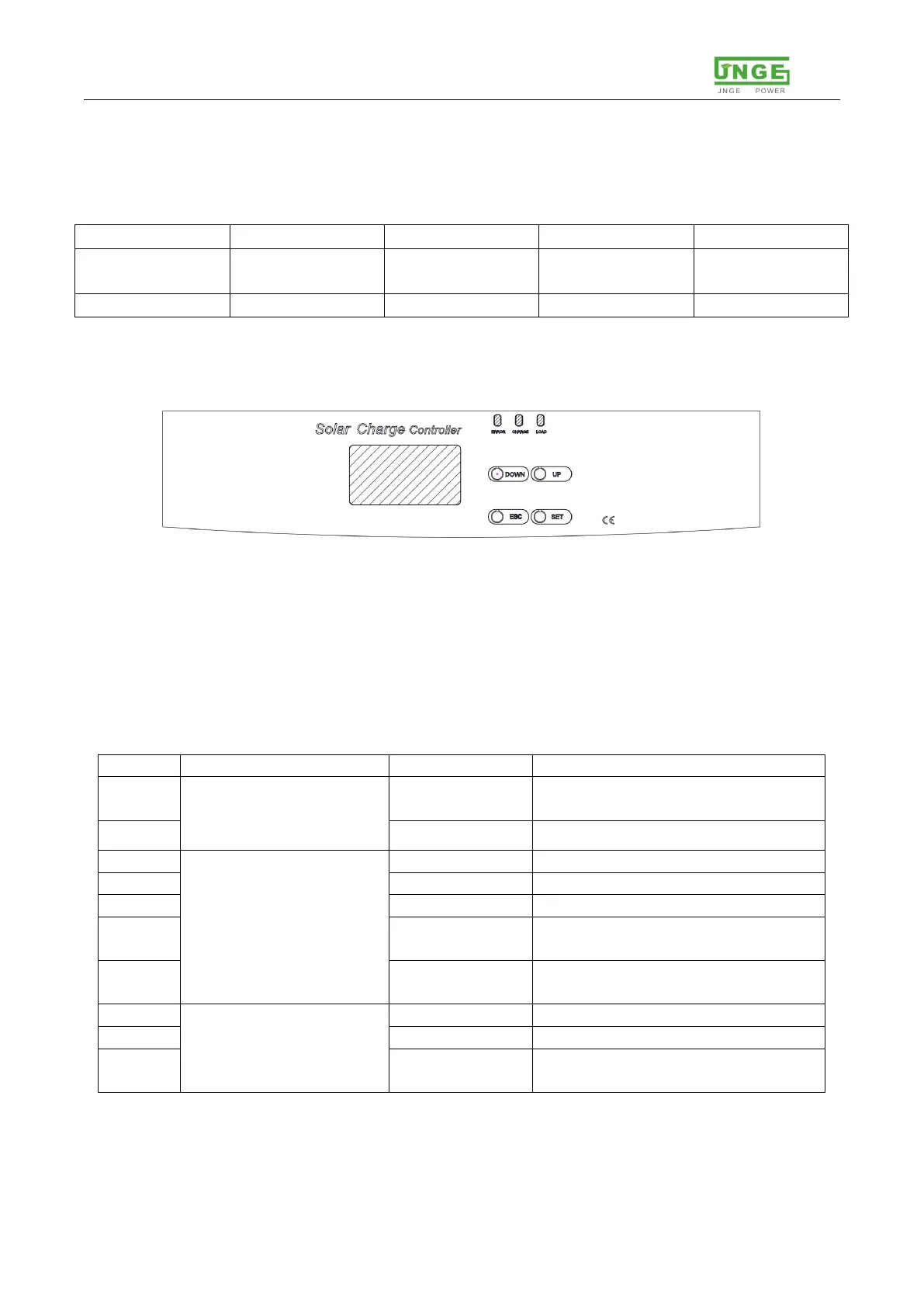

Figure 4-1
4.1 Indicator light
LED indicators on the display panel are ERROR (red), CHARGE (yellow), LOAD
(green) from left to right, and their functions are defined as shown in the following table
：
Table 4-1 Indicator state definition refer to the table
NO.
Indicator light
state
define
1
Trouble light ERROR
（red）
put out
normal operation, no fault
events
2
normal on
faulty event
3
Charging light
CHARGE
（
yellow
）
put out
no charging
4
normal on
fast charging
5
slow flashing
float charging
6
fast
flashing
boost charging
7
dual
scintillation
equalizing charge
8
Loading light LOAD
（
green
）
Normal on
output normal
9
Put out
close dc loading
10
flashing
battery overdischarge off
load
