Attention !
When installing JND-X，ensure good air circulation around equipment. Do not install in
closed boxes。
Danger !
Explosion danger
！
Do not install the controller and battery in the same confined
space!Do not install in a confined space where battery gas can accumulate
。
3.2 Installation
Step 1：choose installation place
Avoid installing JND-X controller in direct sunlight, high temperature and water prone places,
and ensure good ventilation around the controller
。
Step 2：Unpacking and checking
(1)Check packing for breakage or deformation；
(2)Unpacking checking: one controller, one manual, one attachment, etc
；
(3)Check appearance and accessories of the host are in good condition；
The above abnormal conditions, please contact the company
。
Step 3: fixed controller
First, install the lug accessories to the reserved installation positions on both sides of
the top of the housing. Fix the controller to the installation platform or space bracket through
the lug with M5 screws (recommended). Reserve enough ventilation and heat dissipation
space around the installation。

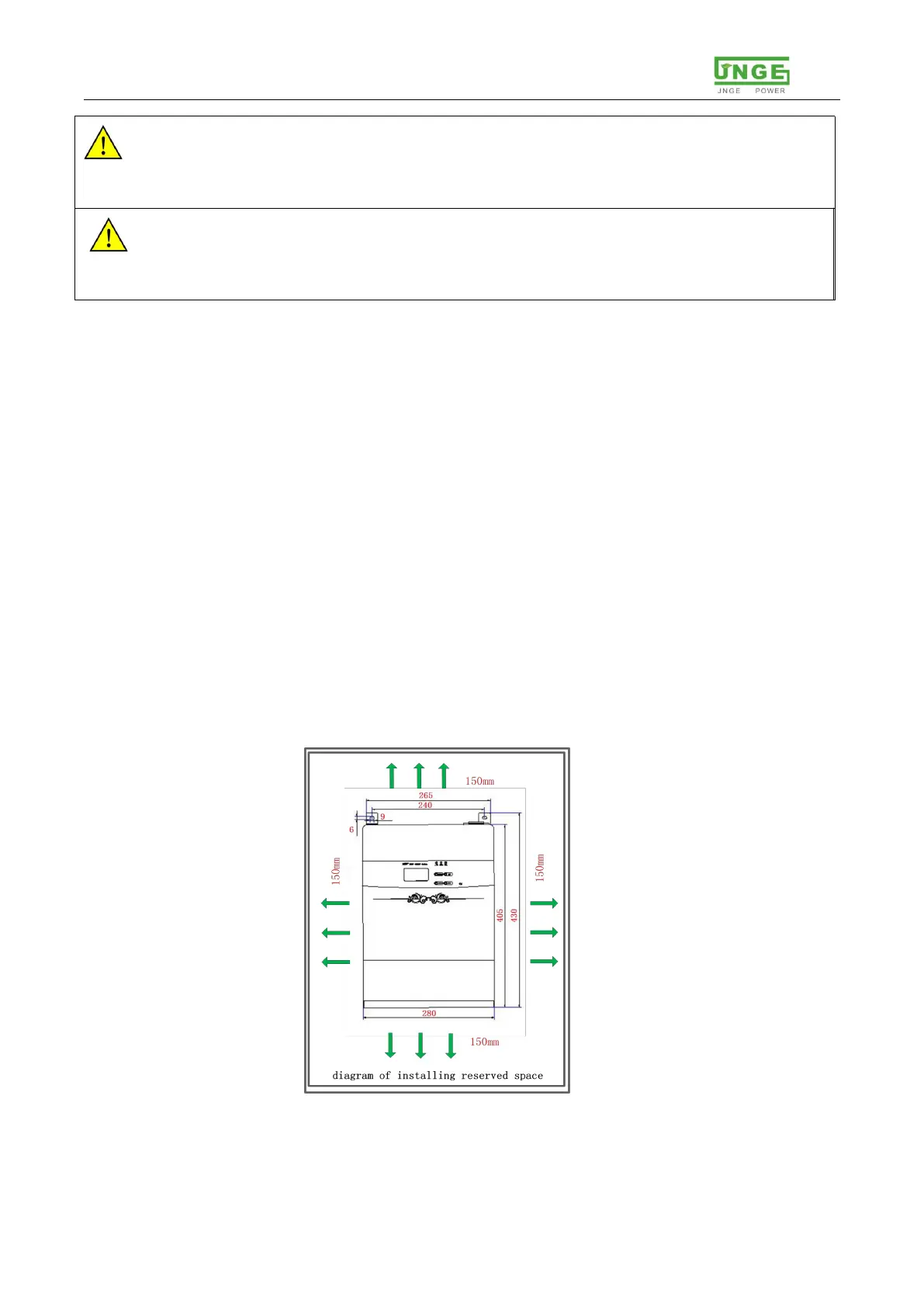

Figure 3-1 diagram of installing reserved space

JNGE Power JND-X Series Specifications

General

Brand	JNGE Power
Model	JND-X Series
Category	Controller
Language	English
