31
6.1 Connecting Terminals of Inverter
All connection terminals are at the bottom of the inverter, Remove the terminal
cover with a cross screwdriver, It contains DC side input (PV) terminal, AC side
AC input (AC IN), AC output (MOTOR) terminal, communication terminal and
water level sensor terminal inside The DC side input terminal, AC side input
and output terminals, and the grounding terminal are connected by a terminal
block.The communication terminal and water level sensor terminal are
connected by a signal terminal block.Please refer to Figure6-1.

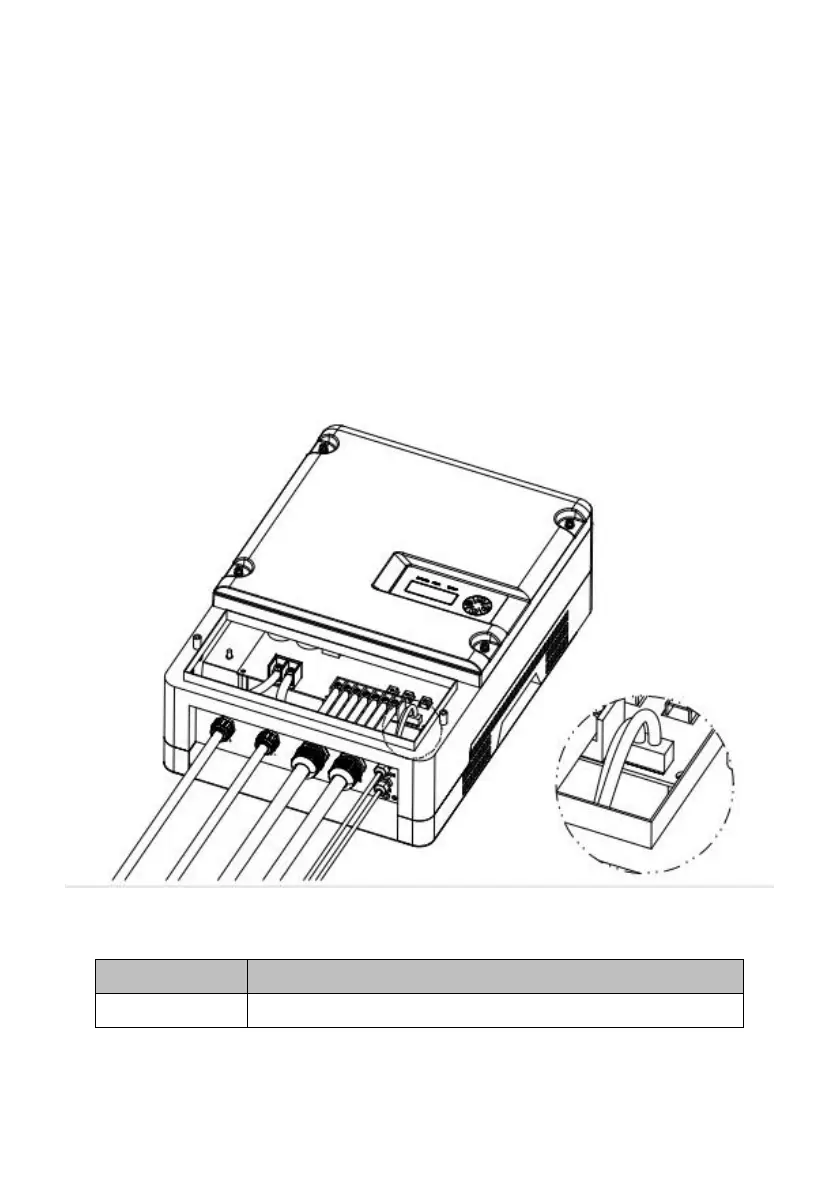

Figure6-1 External connection terminals of inverter
Table6-1 Description
AC input terminals , including R,S,T,PE.
