6.4 AC Side Electrical Connection
Notice！
It’s forbidden to connect several inverters in parallel to one set of pump!
Danger！
Ensure that all cables have no charge before electrical operation!

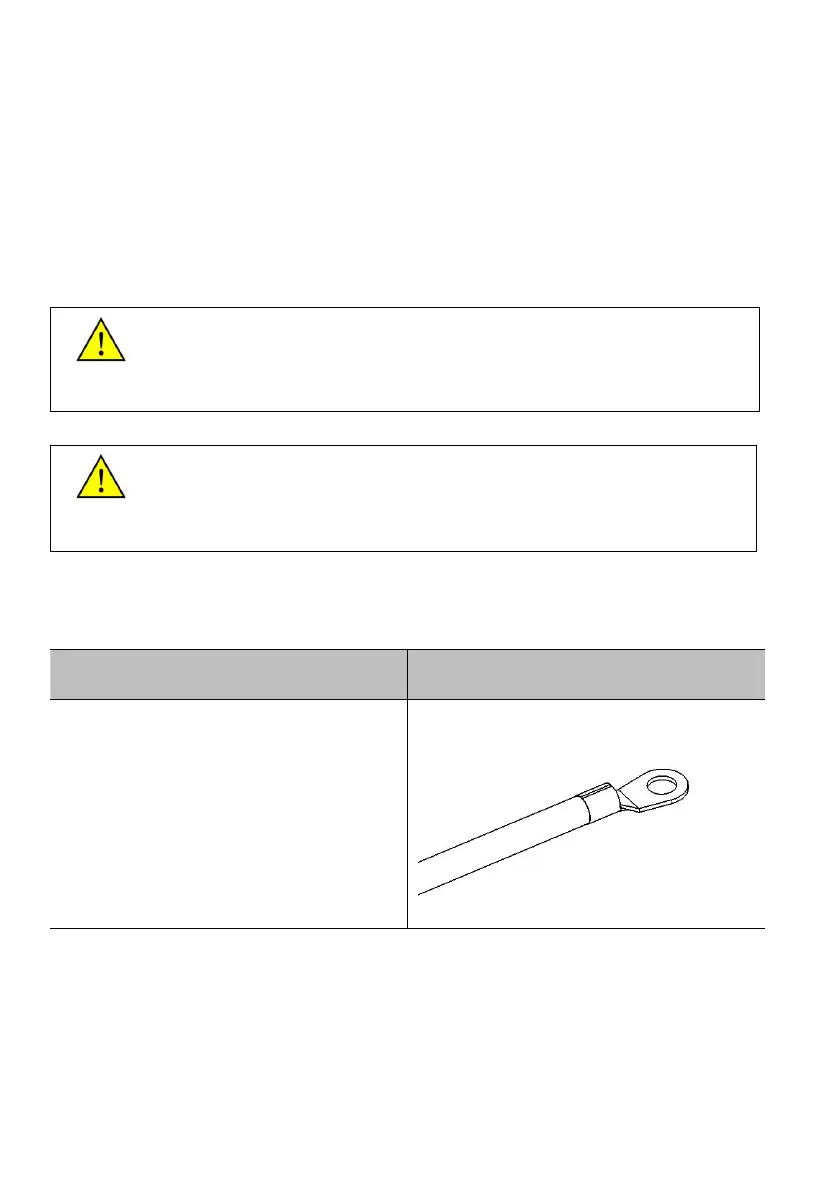

Step1: Connect the wires first:
Follow the steps below to connect the AC wires:
Step1. Fasten the three-phase input,
three-phase output and grounding
wires to the cold pressing terminal
(SC10-6) with crimping pliers
seperately.
Step2: Fix the AC wire (R, S, T, PE, U, V, W) on the terminal through the
corresponding waterproof terminal on the terminal cover. Note: R, S, T, PE
