pass through the AC in waterproof terminal, U, V, W pass through the motor
waterproof terminal. R,S,T are AC input terminals, and U,V,W are AC output
terminals which should be connected to pump.
Noted: For JNPxL series single phase AC input inverter, AC input Live line is
fixed to R corresponding terminal, Neutral line is fixed to S corresponding
terminal, T terminal is not connected.

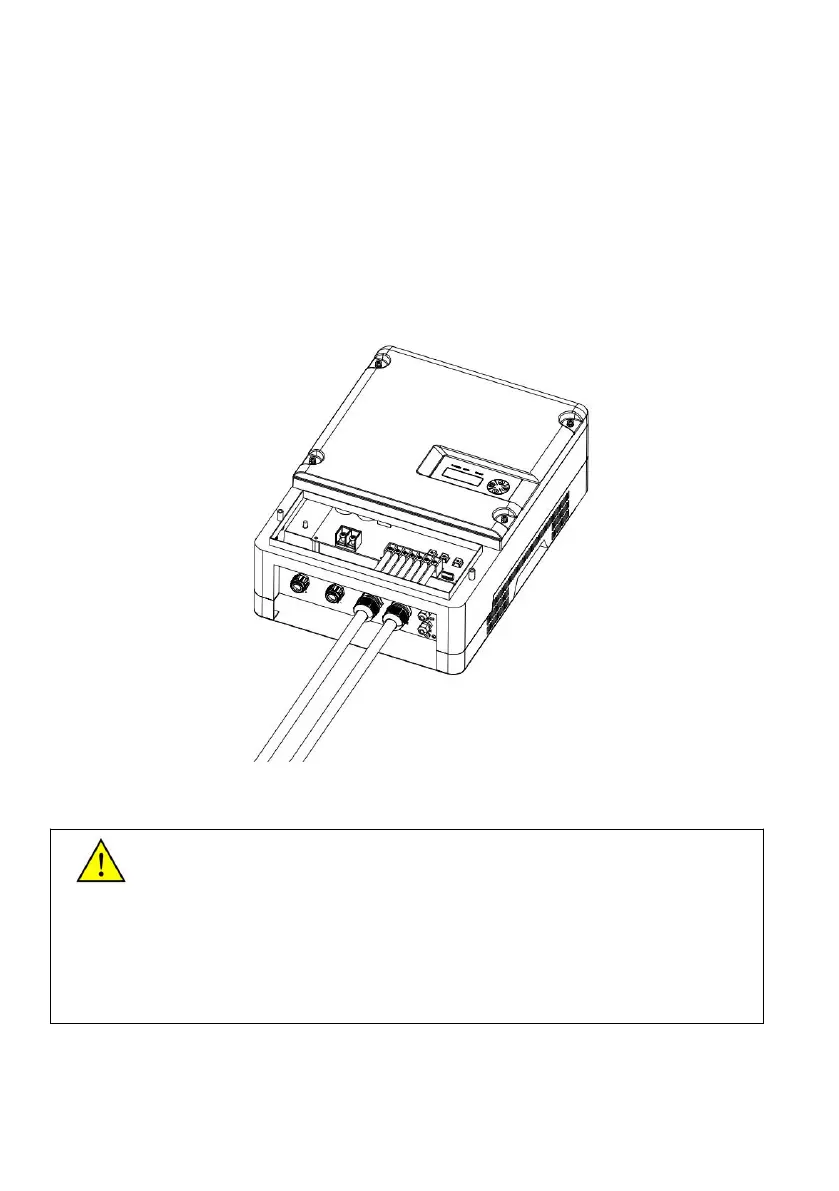

Figure6-3 AC side electrical connection
Step3: Connect the cables between pumping inverter and AC pump.
Danger
！
When the input AC terminal is connected with the inverter, the circuit breaker
at the AC input side shall be disconnected, otherwise the AC input will
generate dangerous voltage, causing personal injury and death. Do not
