Joerns Bariatric Beds
Model Bari10A
© 2015 Joerns Healthcare • 6110089 RevF • 15-2235

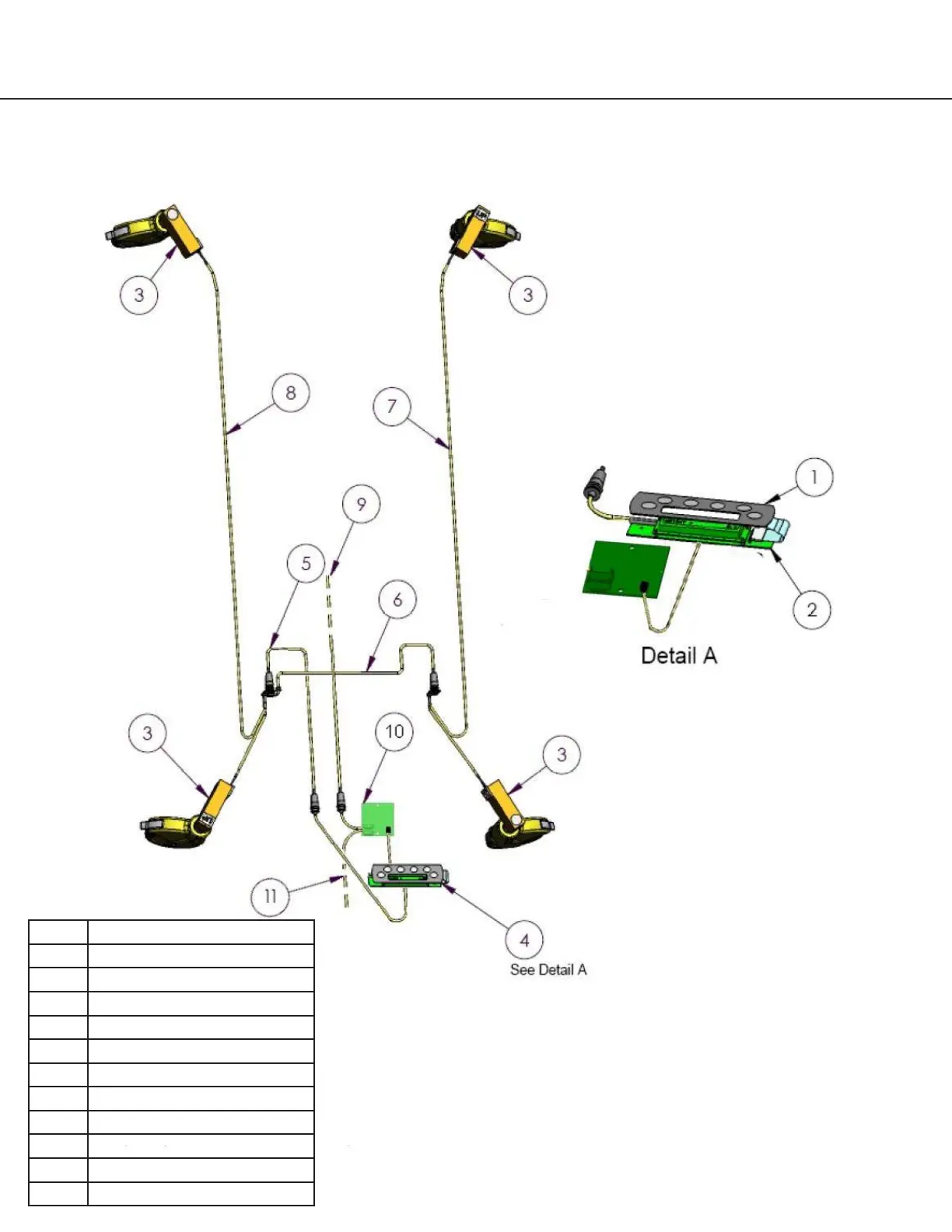

Appendix B – Scale System Wiring Diagram
ITEM DESCRIPTION
1 Membrane Keypad
2 Scale Display Board
3 Load Cell Assembly
4 Scale Display Assembly
5 Scale Harness
6 Foot End Load Cell Harness
7 Left Side Scale Harness
8 Right Side Scale Harness
9 Staff Control Harness
10 Power Conditioning Board
11 Staff Control Harness
