Vision Es -Plus

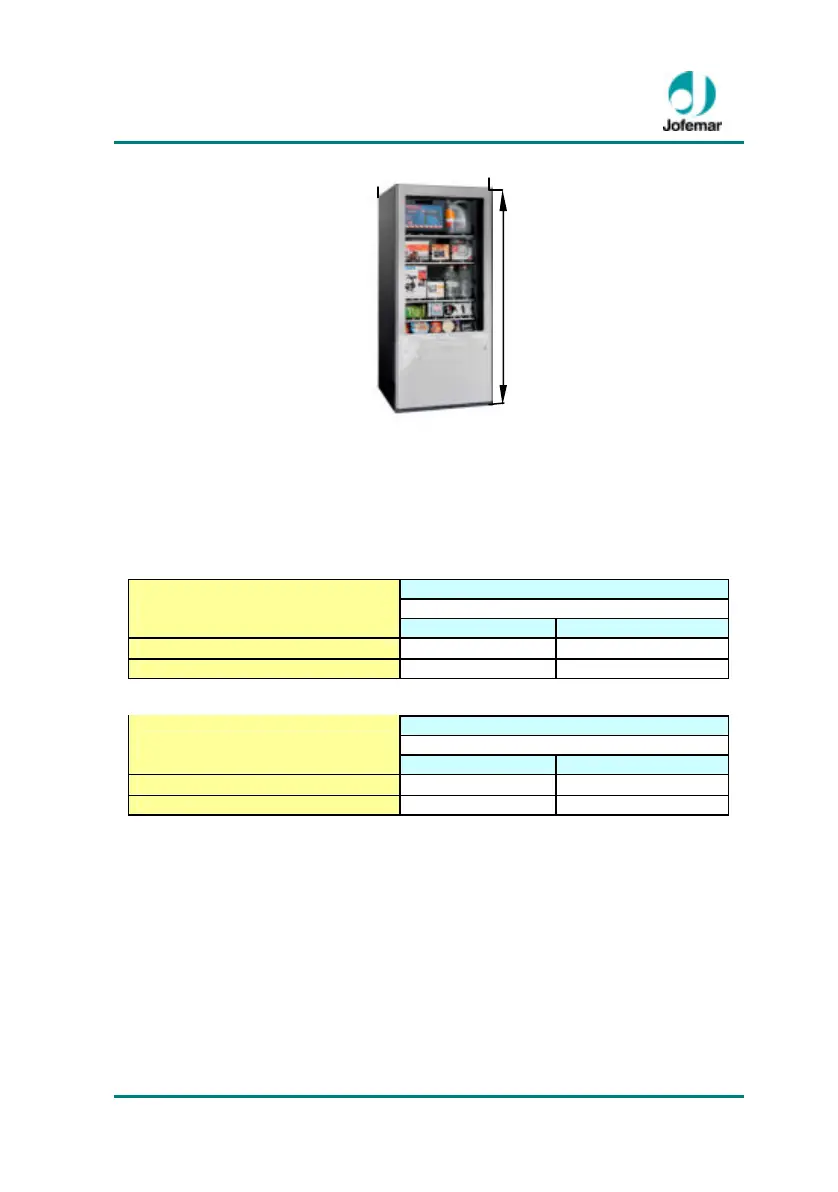

Fig. 12
4. Electric-electronic specifications ~
The cooling assembly, LED lighting power supply, turbine and transformer are supplied
with the mains voltage for the particular country where the machine is sold. They should
therefore not be handled without disconnecting the machine from mains.
Power supply voltage
230 ± 10% VAC. 50 Hz
vision
Maximum power Maximum intensity
Es -Plus (without cooling unit) 100 W 0,4 A
Es -Plus (with cooling unit) 830 W 3,5 A
Power supply voltage
110 ± 10% VAC. 60 Hz
vision
Maximum power Maximum intensity
Es -Plus (without cooling unit) 100 W 0,4 A
Es -Plus (with cooling unit) 830 W 3,5 A
4.1. Initial electrical installation ~
Prepare a socket, protected with an automatic connection system. The socket should
match the machine plug (European, with ground connection). Follow all Low Voltage
Installation Regulations and check that ground connection works properly once the
machine has been installed.
