7.2 IDENTIFICATION OF MAIN LIFT COMPONENTS
 Identify and unpack major lift components (cables, columns, cross beams) and place them
where they belong (front left, front right etc.) See Figure 4.
 Place components in their approximate locations. Do not unwind cables at this point.
Leave cables coiled, close to their respective towers.
 Place runways (decks) about 40” apart and about 3 ft behind line “A”

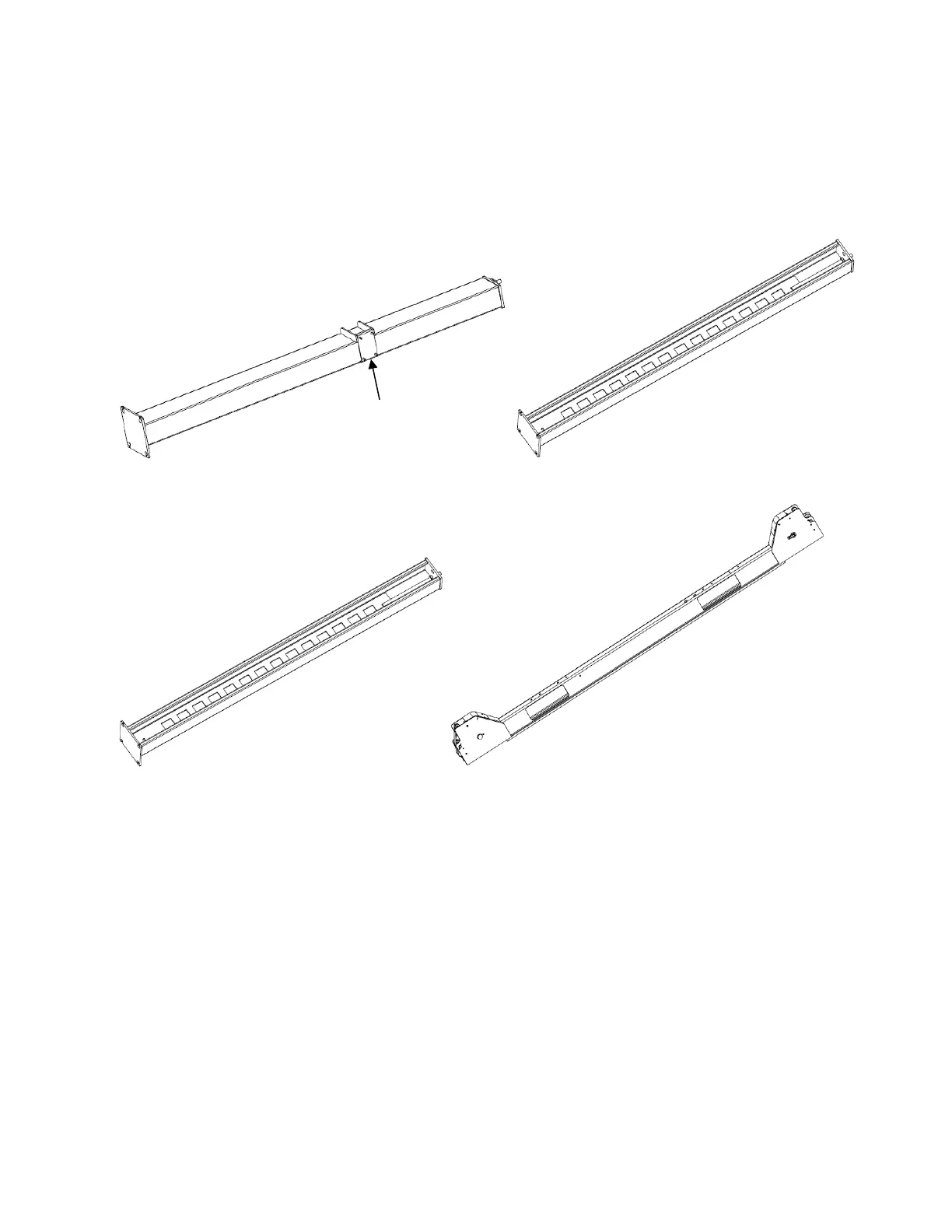

Figure 4
POWER PACK MOUNT
FRONT LEFT TOWER
FRONT RIGHT TOWER
REAR TOWERS
FRONT & REAR CROSS BEAM
