John Bean EELR529A - Cross Beam

- 30 -
10.4 CROSS BEAM
ITEM#
SOE PART#
CL PART#
QT
Y
DESCRIPTION
1
EAS2205V04A
JZQ7-04-01-00
2
CROSSBEAM WELDMENT
2
EAM0155V29A
B40127
4
SAFETY LOCK PIN
3
1-02487A
B40126
8
COTTER PIN
4
EAS2205V07A
B40134
4
SAFETY LOCK WELDMENT
5
EAM0155V30A
B40131
4
SAFETY DOG
6
EAM0155V20A
B40128
8
SAFETY WASHER
7
EAM0155V32A
B40132
4
SAFETY LOCK SPACER
8
EAA0485V05A
B40141
4
AIR CYLINDER ASSEMBLY
9
1-23688A
B40466
4
M6 x 35mm LG HEX HEAD SCREW
10
1-27133A
B40467
4
M6 NUT GB/T41-2000
11
1-22288A
B40144
4
NYLON LOCKNUT M6, GRADE 8 GB/T
889.1-2000
12
1-04887A
B40123
4
CLEVLS PINS WITH HEAD
13
1-06687A
B40124
4
D2X10 COTTER PIN GB/T91-2000
14
EAM0155V39A
B40139
8
HANDLE SPRING
15
EAM0155V75A
B40650
11
PULLEY ASSEMBLY
16
EAM0155V74A
B40053
19
PULLY WASHER
17
EAM0155V26A
B404038-X
8
CROSSBEAM PULLEY SPACER
18
EAS2205V06A
B40116
4
PULLEY SHAFT WELDMENT

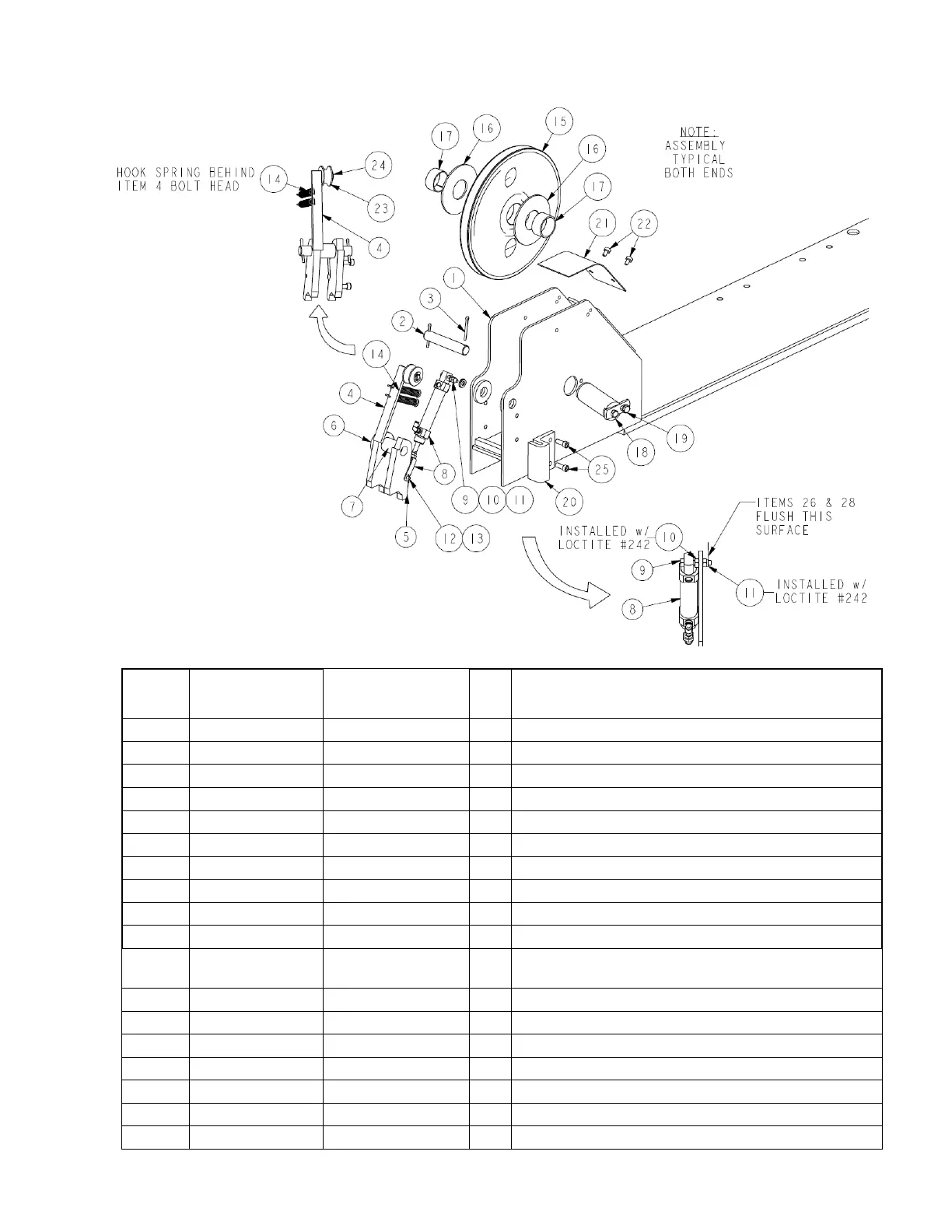

Figure 27
