John Bean EELR529A - General Specifications

- 6 -
3. GENERAL SPECIFICATIONS
Maximum Capacity
12,000 lb.
5450 kg
Maximum Wheelbase – General Service
183”
4646 mm
Maximum Wheelbase – 2-Wheel
Alignment
168-13/16”
4288 mm
Maximum Wheelbase – 4-Wheel
Alignment
158-1/2”
4026 mm
Minimum Wheelbase – 4-Wheel Alignment
88-1/2”
2248 mm
Overall Length
251-1/2”
6383 mm
Overall Width
134-3/4”
3423 mm
Lowered Runway Height
7-3/16”
182.5 mm
Maximum Lifting Height (to runway
surface)
78”
1981 mm
Rise Time
74 Seconds
Ramp approach angle (no shims)
10°
Air Supply requirements:
90 - 120 PSI
Pneumatic Filtration Oil Type:
Snap-on Air Tool oil or equivalent
Hydraulic Oil Capacity:
3.0 gal
11L
Hydraulic Oil Type:
ISO 32 (10 weight) hydraulic oil
Power Requirements
Standard motor
230VAC, 1PH., 60 Hz, 12.5A
Shipping Weight
3307lb
1500 kg
Maximum Operating Pressure (Full Load):
2900 psi
200 Bar
Jack Beam Fully Raised Up
13-1/8”
332.5mm
Jack Beam Fully Collapsed
3-1/8”
78.5mm
Extension Adapter for Jack Beam
3”
76mm

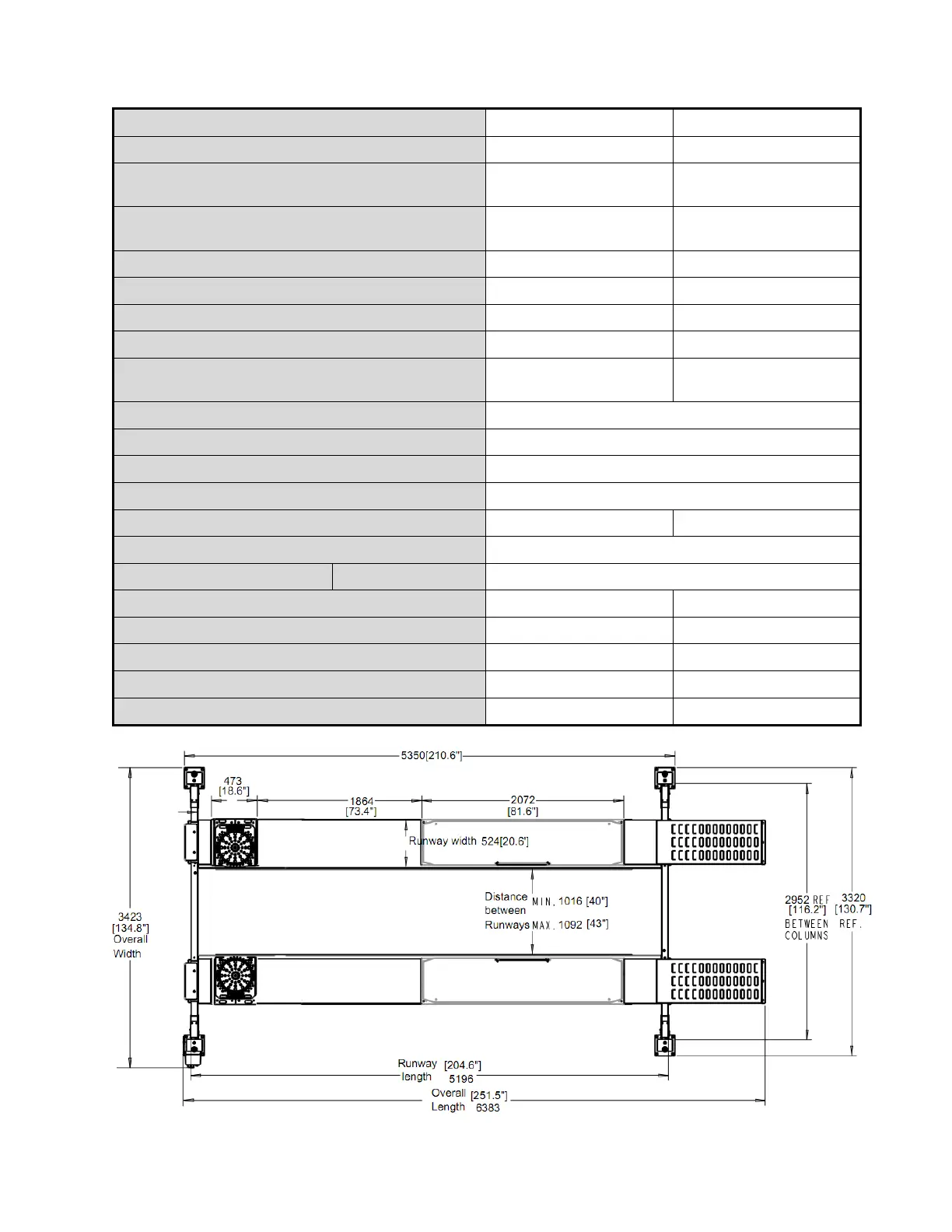

Figure 1
