7.8 INSTALL FRONT TURNTABLES
1. Position the lift at a comfortable working height and lower onto a mechanical safety
lock.
2. Place each front turntable assembly on the front alignment pan of the runway.
Moving lock handles of the turntables should be oriented to the outside of lift,
See Figure 21 (a).
3. If the surface of turntable is not flat with the runway, the turntable support can be
adjusted to level with runway by using the 6 adjustment bolts under the support
plate. See Figure 21 (b). Tighten the jam nuts on the adjusting screws after
adjusting.
4. Verify that the turntable assembly is completely seated in the front alignment pan.
Gently slide each turntable in the alignment pan, left and right, to verify that they
can be positioned for different car widths.

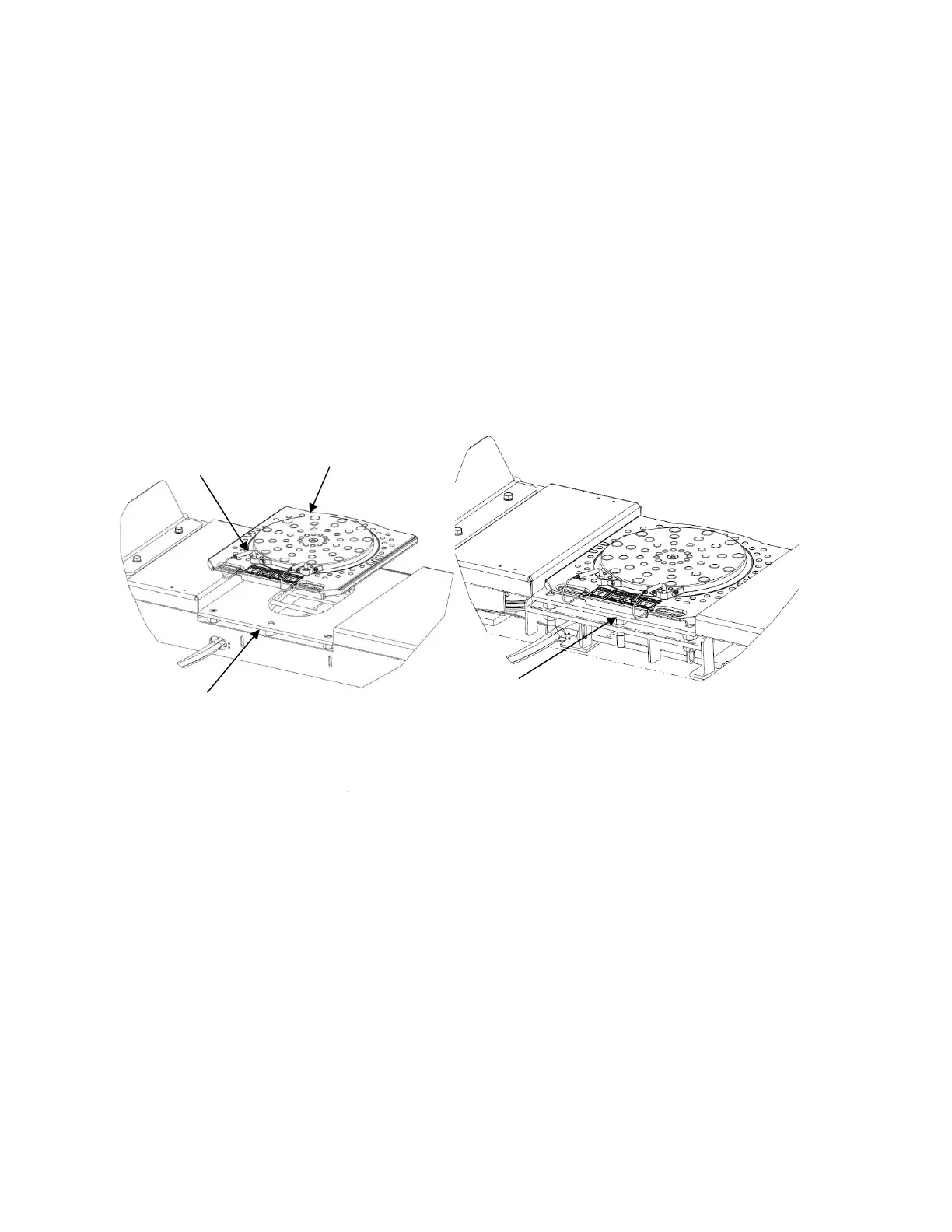

a. Position Turntable b. Turntable Height
Adjustment
Adjustment Bolts and Nuts
Figure 21 - Turntable Position and Adjustment
