Installation, Operation & Maintenance Manual for Jack Beam
SPECFICATIONS:
Capacity
6,000 lbs.
2725 kg
Minimum Arm Reach
33”
838 mm
Maximum Arm Reach
50-3/16”
1275 mm
Minimum Lowered Height
above Deck Surface
3-1/8”
78.5 mm
Maximum Raised Height above
Deck Surface
13-1/8”
332.5 mm
Power Requirements @ 20
in3/min (flow rate)
90-120 psi
6-8 bar
Maximum Operating Pressure
@ Rated Load
3915psi
270 bar
Shipping Weight
308 Lbs.
140 Kg.

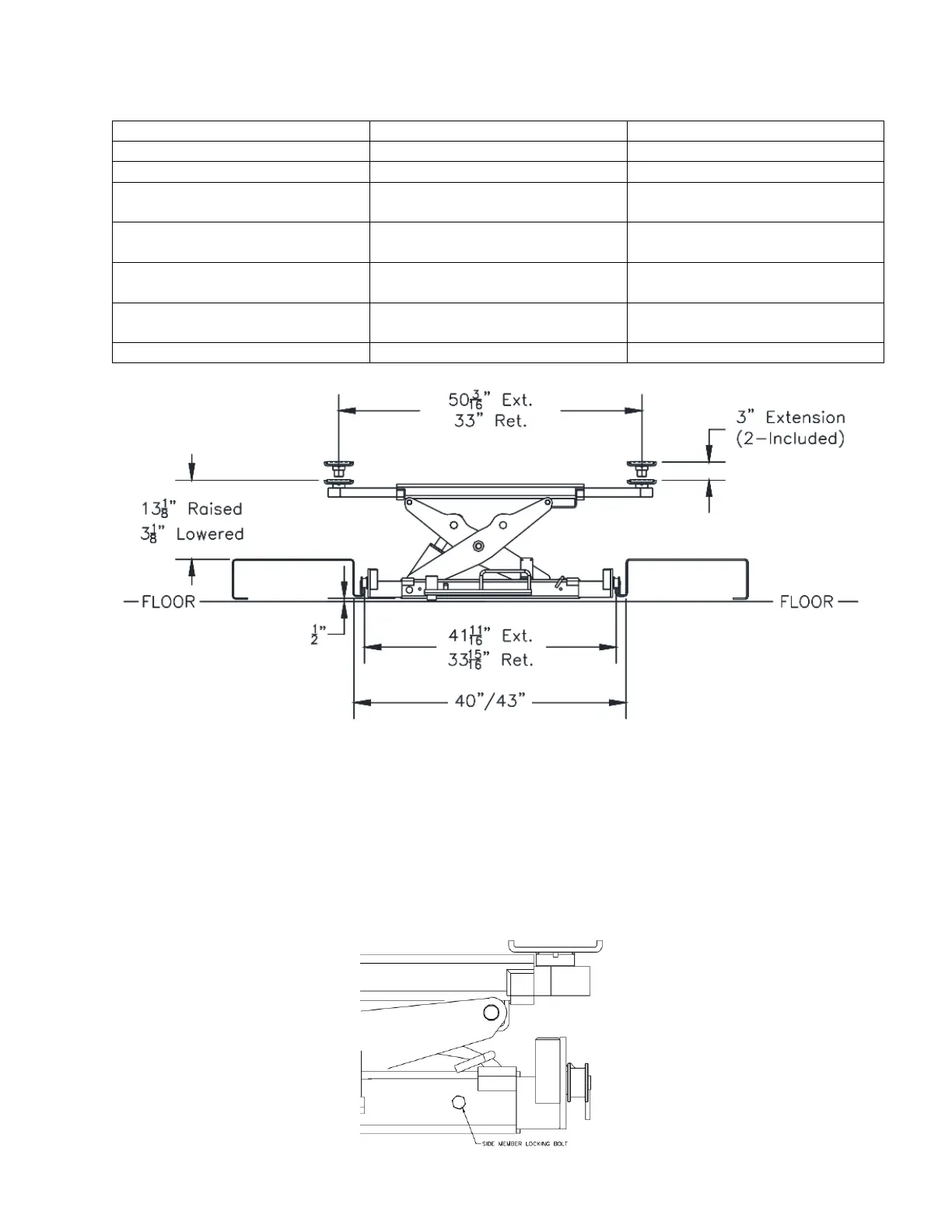

Fig. 1
INSTALLATION
1) Place jack assembly on lift rack rails.
2) Install Jack Beam air supply kit, see details in Appendix B
3) Once side members are adjusted and jack is centered between the rails, tighten the (4)
hex bolts (2 per side) to lock in place, Fig 2.
