Page 23
John Bean VPI System II Operators Manual
11.0 SAPE GAUGE CALIBRATION - F80
To calibrate the SAPE gauge.
1. Make sure the SAPE arm is in the home position as
shown in Figure 41.
NOTE: WEIGHT TRAY MUST BE INSTALLED TO IN-
SURE PROPER HOME REFERENCE POSITION.
2. Activate the gauge calibration program. Press and
release the F key and rotate the shaft until 80 is dis-
played on right display window and press enter.
3. The right display will read “CAL” “SAP” for one sec-
ond (Do not move the arm at this point). This means
CALibration SAPE. Then it displays “SAP” “OUT”. The
SAPE calibration procedure is activated.
4. Gently pull the SAPE arm OUT until it is fully ex-
tended, (Figure 42) hold it steady for about 1 second, a
tone will sound. NOTE: The SAPE arm will pull out past
the Bell Housing Face.
5. Display will read “H” “POS” followed by a beep.
Return the arm to the home position.
6. Display changes to “dIA” “ -18”
8. Gently pull the SAPE out and rest the arm of the
SAPE gauge on the inner part of the bell housing as
shown in Figure 43. A tone will sound and the display
will change to “H” “POS”.
9. Return the arm to the home position. The display will
change to “dIA” “42.1”.
10. Locate the Calibration Weight. Place the calibration
weight with the large end oriented on the bell collar.
Extend the SAPE arm outward and rotate the exten-
sion to just touch the end of the calibration weight as
shown in Figure 44. A tone will sound and the display
will change to “H” “POS”. Return the SAPE arm to the
home position.
11. A tone will sound and the display will change to
“CAL” “End”.
CALIBRATION COMPLETE

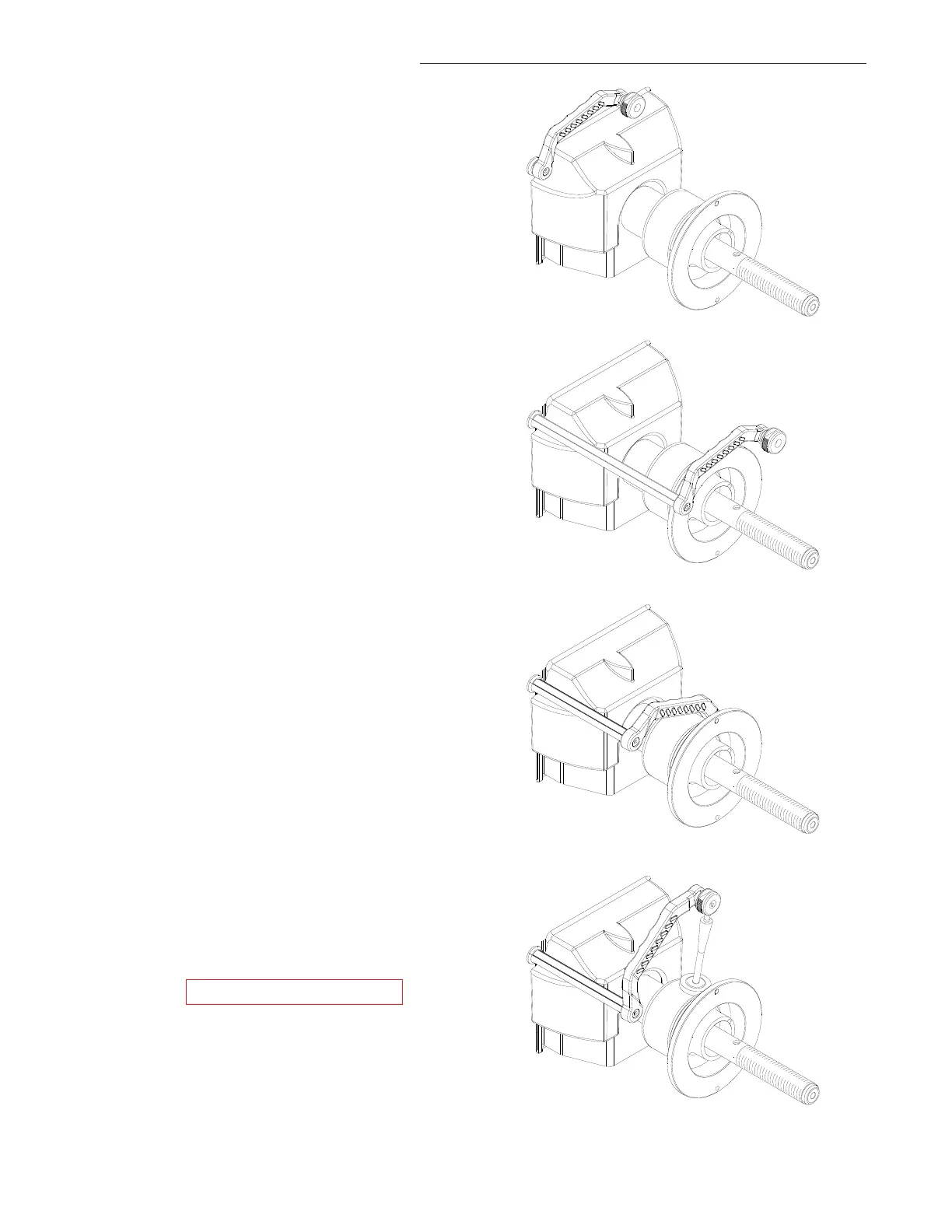

Figure 41 - SAPE Resting in the Home
Position
Figure 42 - SAPE Rod Arm Fully Extended
Figure 43 - Extension Resting on Bell Collar
Figure 44 - Touch end of Calibration Weight
resting on Bell Collar
