Johnson Controls 20 J ZJ Series User Manual

689670-BIM-A-0311
Johnson Controls Unitary Products 11

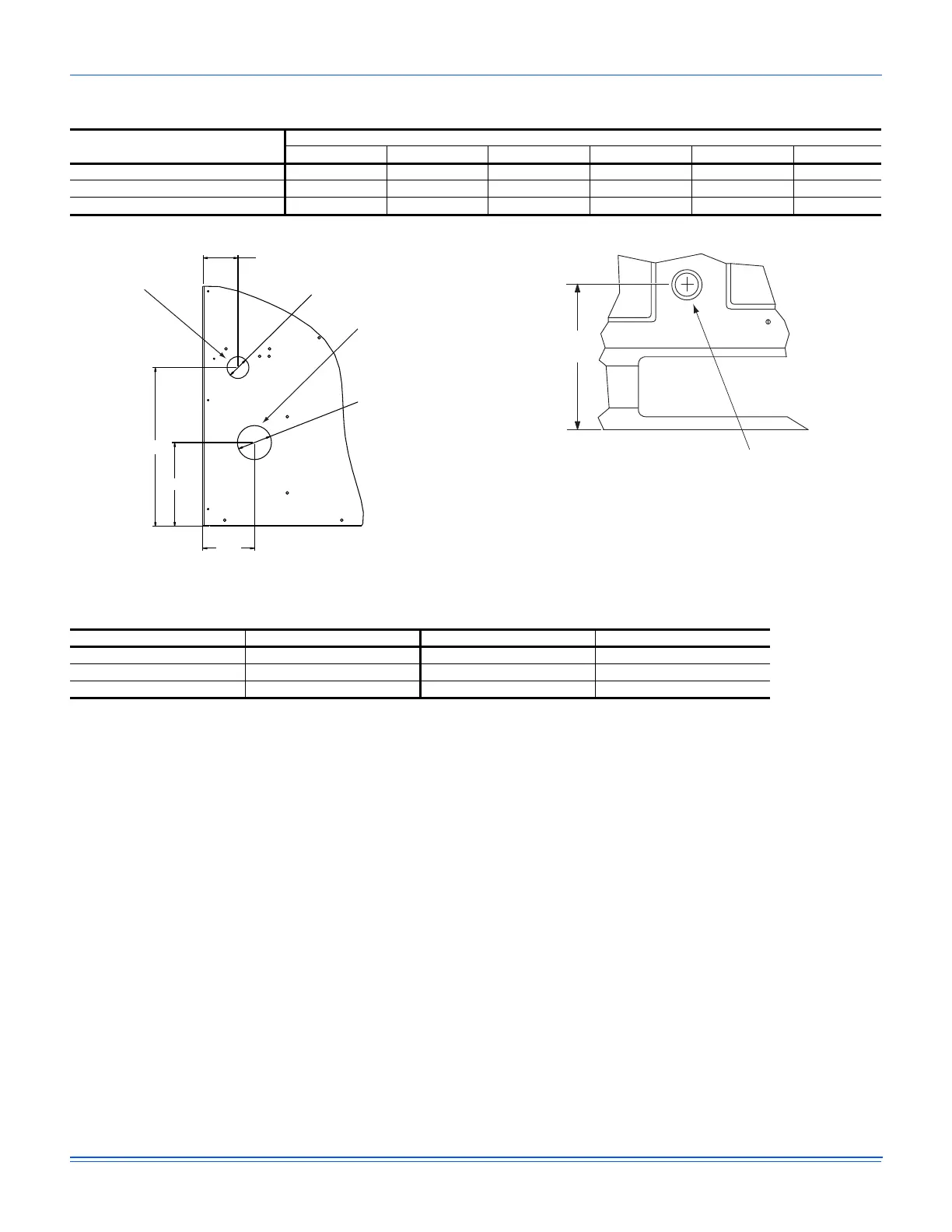

Detail A Detail B
Table 4: ZU-A3 thru -A5 Unit Physical Dimensions
Unit Model Number
Dimension (in.)
ABCDEF
ZU-A3 42 89 22 1/8 18 3/16 15 3/16 6 3/16
ZU-A4 42 89 22 1/8 18 3/16 15 3/16 6 3/16
ZU-A5 42 89 22 1/8 18 3/16 15 3/16 6 3/16
42” CABINET
Ø 3.126
Ø 2.000
3.184
4.727
7.705
14.594
Gas Pipe Inlet
Gas Exhaust Vent
5-3/8
3/4” FPT
Table 5: ZU-A3 thru -A5 Unit Clearances
Direction Distance (in.) Direction Distance (in.)
Top
1
1. Units must be installed outdoors. Over hanging structure or shrubs should not obscure condenser air discharge outlet.
72 Right 12
Front 36 Left 36
Rear 36 Bottom
2
2. Units may be installed on combustable floors made from wood or class A, B or C roof covering materials.
0
