Johnson Controls 20 J ZJ Series User Manual

689670-BIM-A-0311
8 Johnson Controls Unitary Products

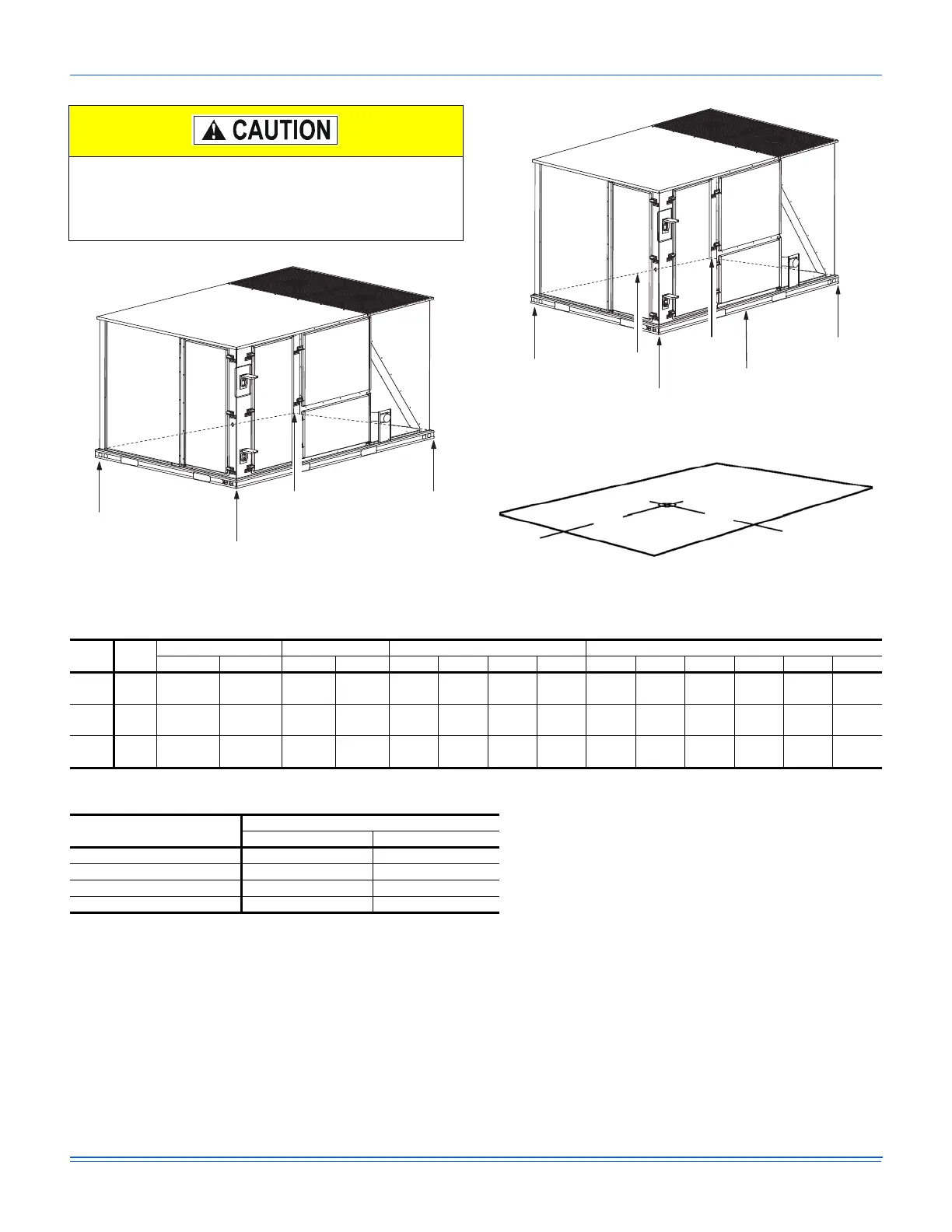

Figure 5: Unit 4 Point Load Weight
Figure 6: Unit 6 Point Load Weight
Figure 7: Center of Gravity
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.
D
A
CB
LEFT
FRONT
D
A
C
B
E
F
LEFT
FRONT
X
Y
LEFT
FRONT
Table 2: Weights and Dimensions
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
-A3
(3)
ZU 728 723 40 26 175 143 182 223 121 105 92 117 134 154
-A4
(4)
ZU 768 763 40 26 185 151 192 235 128 111 97 124 141 162
-A5
(5)
ZU 869 864 40 26 210 171 217 266 145 126 110 140 160 184
Table 3: ZU-A3 thru -A5 Unit Accessory Weights
Unit Accessory
Weight (lbs.)
Shipping Operating
Economizer 90 85
Power Exhaust 40 35
Electric Heat
1
49 49
Gas Heat
2
110 110
1. Weight given is for the maximum heater size available (24KW).
2. Weight given is for the maximum number of tube heat exchangers
available (8 tube).
