Johnson Controls 5 J ZE Series User Manual

5742639-JIM-C-0220
Johnson Controls Ducted Systems 47

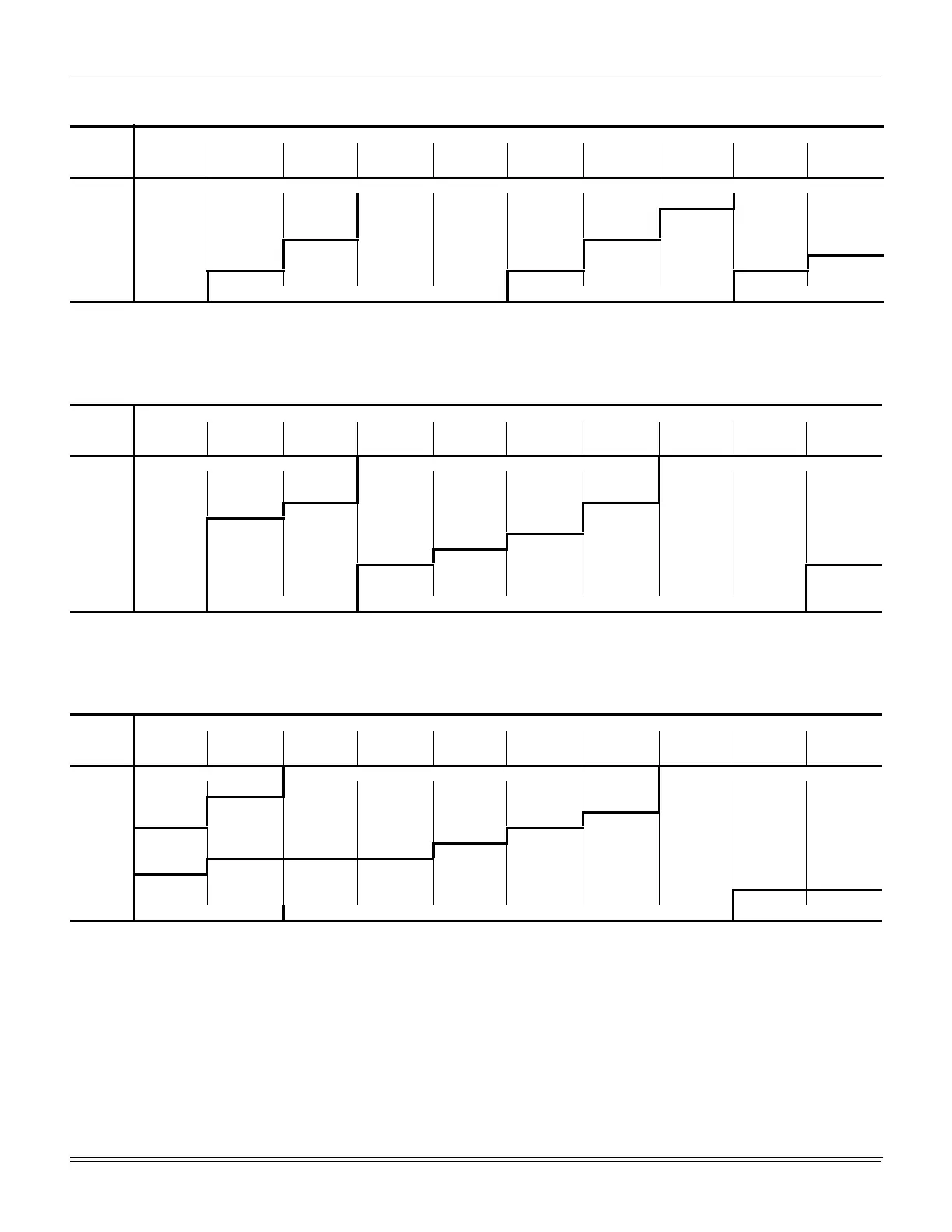

J04ZE (4 Ton Belt Drive) Bottom Duct
`Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1000 688 0.34 779 0.42 866 0.50 949 0.59 1029 0.67 1107 0.77 1181 0.85 1253 0.95 1322 1.05 1388 1.15
1200 722 0.40 812 0.48 899 0.56 983 0.64 1063 0.73 1140 0.82 1215 0.90 1286 1.01 1355 1.11 1422 1.20
1400 761 0.48 852 0.56 939 0.64 1022 0.73 1103 0.81 1180 0.89 1254 0.99 1326 1.08 1395 1.19 1462 1.29
1600 807 0.61 897 0.68 984 0.76 1068 0.84 1148 0.93 1225 1.02 1300 1.12 1371 1.21 1440 1.31 1507 1.40
1800 856 0.77 947 0.84 1034 0.93 1118 1.00 1198 1.10 1275 1.18 1349 1.28 1421 1.37 1490 1.47 1557 1.57
2000 910 0.97 1001 1.04 1088 1.13 1172 1.21 1252 1.30 1329 1.39 1403 1.48 1475 1.57 1544 1.68 1611 1.77
FS4
J05ZE (5 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1200 722 0.40 812 0.48 899 0.56 983 0.64 1063 0.73 1140 0.82 1215 0.90 1286 1.01 1355 1.11 1422 1.20
1400 761 0.48 852 0.56 939 0.64 1022 0.73 1103 0.81 1180 0.89 1254 0.99 1326 1.08 1395 1.19 1462 1.29
1600 807 0.61 897 0.68 984 0.76 1068 0.84 1148 0.93 1225 1.02 1300 1.12 1371 1.21 1440 1.31 1507 1.40
1800 856 0.77 947 0.84 1034 0.93 1118 1.00 1198 1.10 1275 1.18 1349 1.28 1421 1.37 1490 1.47 1557 1.57
2000 910 0.97 1001 1.04 1088 1.13 1172 1.21 1252 1.30 1329 1.39 1403 1.48 1475 1.57 1544 1.68 1611 1.77
2200 968 1.22 1059 1.30 1146 1.37 1229 1.46 1309 1.54 1387 1.64 1461 1.73 1533 1.83 1602 1.92 1668 2.03
2400 1029 1.51 1119 1.58 1206 1.67 1290 1.74 1370 1.84 1448 1.92 1522 2.02 15932.1116632.2117292.31
2600 1093 1.84 1183 1.91 1270 1.98 1354 2.07 1434 2.15 1511 2.25 1586 2.34 - - - -- -
FS4
JA6ZE (6 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. 1kW = BHP x 0.862.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Static Drive Option High Static Drive Option
1600 829 0.46 914 0.52 988 0.61 1055 0.71 1115 0.83 1170 0.95 1222 1.09 1273 1.23 1324 1.36 1377 1.50
1800 858 0.63 943 0.70 1017 0.78 1084 0.89 1144 1.00 1199 1.13 1251 1.26 1302 1.40 1353 1.54 1406 1.67
2000 898 0.84 983 0.90 1057 0.99 1124 1.09 1184 1.21 1239 1.34 1291 1.47 1342 1.61 1393 1.75 1446 1.88
2200 945 1.08 1030 1.15 1104 1.23 1171 1.34 1231 1.45 1286 1.58 1338 1.72 1389 1.85 1440 1.99 1493 2.13
2400 997 1.37 1081 1.44 1156 1.52 1222 1.62 1282 1.74 1338 1.87 1390 2.00 1441 2.14 1491 2.28 1544 2.41
2600 1052 1.70 1136 1.77 1211 1.85 1277 1.96 1337 2.07 1392 2.20 1445 2.33 14952.4715462.6115992.74
2800 1108 2.08 1192 2.14 1267 2.23 1334 2.33 1394 2.45 1449 2.58 1501 2.71 15522.8516032.9916563.12
3000 1166 2.50 1250 2.57 1325 2.65 1391 2.75 1451 2.87 1506 3.00 1558 3.13 1609 3.27 ---- ---- ---- ----
